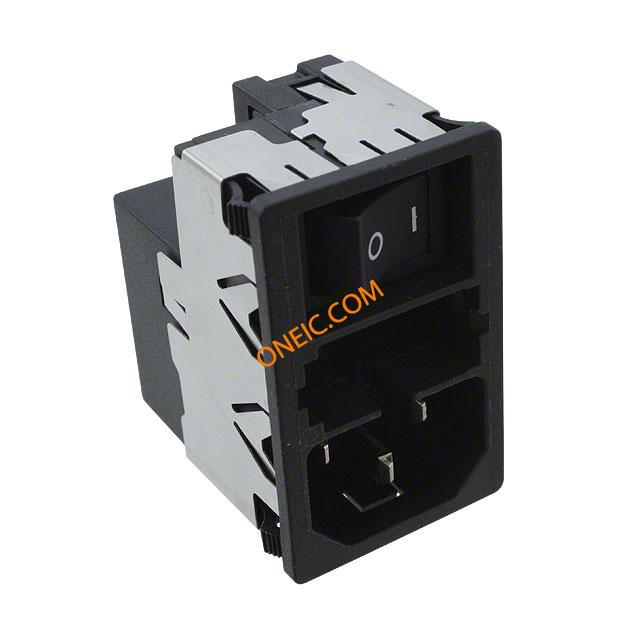

KMF1.1221.11
| Manufacturer | |
| Description | Power Entry Module Filtered M 3 POS 250VAC 2A Switch/Fuse ST 1 Port KMF G-STECKER-KOMBI MIT FILTER 2A MOD PWR STD FILTER 2A 1PL QC PNL AC Power Entry Modules KMF PWR ENTRY MODUL W. FILTER 2A INLET FILTER, IEC, C14, KMF, 2A KMFPOWERENTRYMODULEW.FILTER2A Power inlet with filter 2 A 250 VAC, KMF1.1221.11, Schurter |
| Category |
商业参数
| 最小起订量 | 20 | 产品 | Inlets |
| 单位包装 | 20 | 标准包装数量 | Bulk |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85363090 | 认证机构 | :CCC |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 2A | 电压 | 125/250VAC |
| 电容 | :0.047µF | 滤波器类型 | General Purpose |
| 额定电压 | 250 VAC | 开关功能 | Switched |
| 电感量范围 | :4mH | 最大额定电流 | :2A |
| 最小输入电压 | 250 Vac | 漏电流（IS(off)）（最大） | :500µA |
机械参数
| 重量 | 2.010616 oz | 端接方式 | Solder Lug |
| 安装类型 | Snap-In | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 安装样式 | Snap In | 保险丝座类型 | Sold Separately |
| 壳体材料 | Thermoplastic | 端接样式 | Quick Connect |
| 触点数 | 3 | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 系列 | KMF | 产品特性 | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated |
环境参数
| 工作温度 | - 25 C to + 85 C | ||
