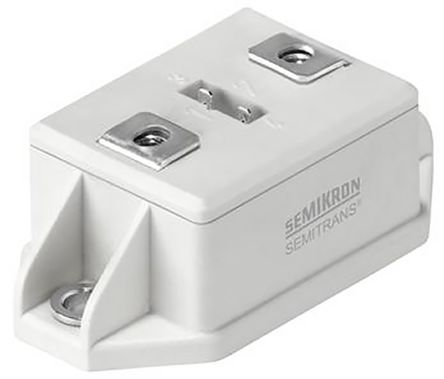

SKM180A020
| Category |
对参数有疑问？问 AI 助手
Compliance
| Rad Hardened | No | ||
Electrical
| Vgs (Max) | ?20 V | Power - Rated | 700 |
| Delay Time - ON | 100 ns | Output Function | 增强 |
| Transistor Type | IGBT | Delay Time - OFF | 900 ns |
| Voltage - Supply | 200V | Number of Elements | 1 |
| Resistance - Input | 11 mΩ | Vgs(th) (Max) @ Id | 4V |
| Vce(on) (Max) @ Vge, Ic | 200 V | Voltage - Supply (Vcc/Vdd) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | ±20 V | Current - Collector (Ic) (Max) | 180A |
| Resistance - Post Trip (R1) (Max) | 11 mOhm | Current - Drain (Idss) @ Vds (Vgs=0) | 180 A |
| Input Capacitance (Ciss) (Max) @ Vds | 16 nF @ 25 V | Current - Continuous Drain (Id) @ 25degC | 180 A |
Mechanical
| Width | 42mm | Height | 29mm |
| Length | 78mm | Weight | 0.18 kg |
| Mounting Type | Screw | Number of Pins | 4 |
| Package / Case | SEMITRANSM1 | Package Cooled | Case D-15 |
| Package Quantity | 10 | Size / Dimension | 78 x 42 x 29mm |
| Number of Positions | 4 | ||
Product Info
| Mfr | 意大利 | Spg | 10 |
| Type | Power MOSFET | Series | SKM |
| Function | Y | Polarity | N |
| Channel Type | Enhancement | Card Standard | 功率 MOSFET |
| Number of Units | 1 | Capacity (Pounds) | 0.15 千克 |
| Connection Method | 2 x M5 | Other Specifications | 200 V |
Environmental
| Operating Temperature | -40C to 150C | ||
