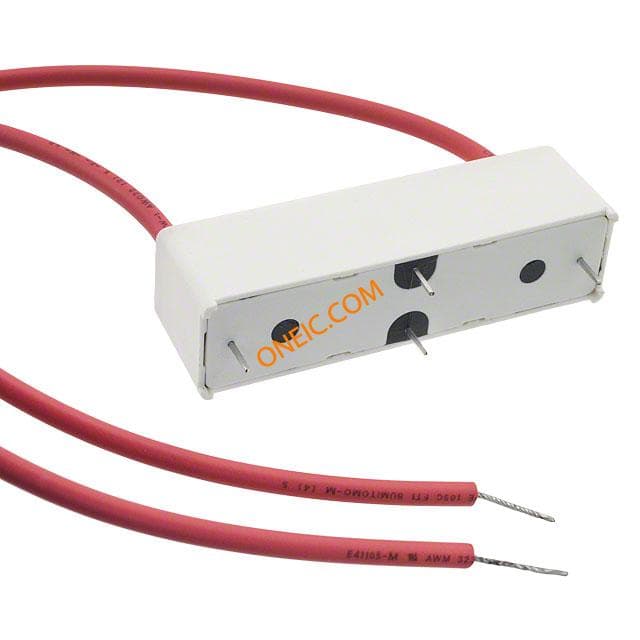

Business
| Standard Package | 20 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | ||
Electrical
| Voltage | :9.0 V | Coil Type | Non Latching |
| Power - Max | 50 W | Coil Current | 80mA |
| Release Time | 2ms | Isolation Type | 17kV ac/dc |
| Voltage - Core | :7kV | Coil Resistance | 150 Ohms |
| Number of Poles | :1 | Voltage - Supply | 12VDC |
| Switching Voltage | 7000VAC, 7000VDC - Max | Contact Resistance | 250 mΩ |
| Vgs(th) (Max) @ Id | 1.25 VDC | Current - Switching | :2A |
| Current Rating (Max) | :2A | Must Operate Voltage | :9.0V |
| Must Release Voltage | :1.25V | Current - Max/Contact | :2A |
| Voltage - Input (Min) | :9V | Voltage - Supply (Min) | :9.0V |
| Voltage - Switching DC | 7000V dc | Vce(on) (Max) @ Vge, Ic | 9 VDC |
| Contact Rating (Current) | 2A | Voltage - Supply (Vcc/Vdd) | :7kV |
Mechanical
| Depth | 15.8mm | Width | :60mm |
| Height | 18.5mm | Length | 60mm |
| Weight | 0.02983 | Packaging | Tray |
| Contact Form | SPST-NO (1 Form A) | Height (Max) | :18.5mm |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Contact Material | Tungsten (W) | Termination Style | PC Pin |
| Number of Positions | :10 | Contact Layout, Typical | SPST-NO |
Product Info
| Series | :D | Relay Type | Reed |
Environmental
| Operate Time | 3ms | Mechanical Life | 1000000 (Electrical) cycles |
| Switching Cycles | :1000000 | Operating Temperature | -20°C ~ 70°C |
