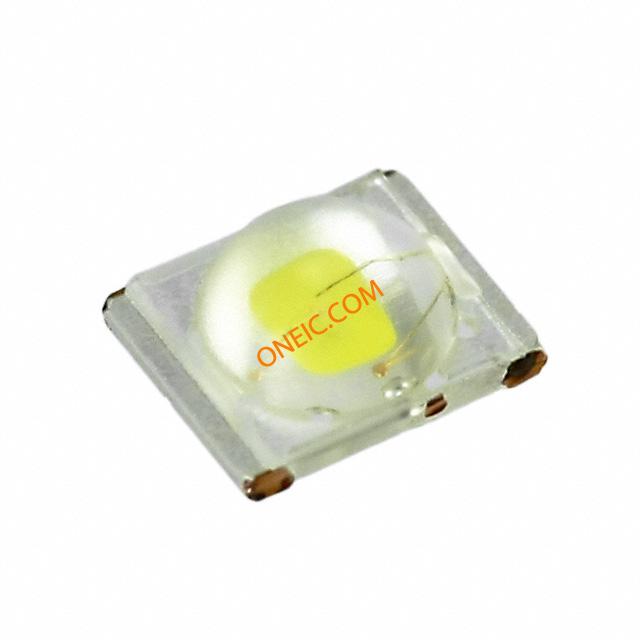

LCW100Z1
| Manufacturer | |
| Description | SSC LED CHIP LED Standard LEDs - SMD Natural White 2600K - 8200K LED WHITE 5400K WTR CLR 1411 CHIP LED, PURE WHITE EMIT, 120LM/W LED; SMD; 3525; white; 2000mcd; 120°; 3.5x2.8mm |
| Category |
Business
| Other Names | 897-1041-1 | Product Category | Standard LEDs - SMD |
| Standard Package | 2,000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :- | Optic Size | 3.2 mm x 2.8 mm |
| Luminous Flux | :7lm | Viewing Angle | 120 deg |
| Current - Output | 20mA | Voltage - Supply | 3.2V |
| LED Forward Current | 20 mA | LED Forward Voltage | 3.2 V |
| Millicandela Rating | 2000mcd | Wavelength - Dominant | 2600 K to 8200 K |
| Power Dissipation (Max) | :175mW | Current - DC Forward (If) (Max) | :20mA |
Mechanical

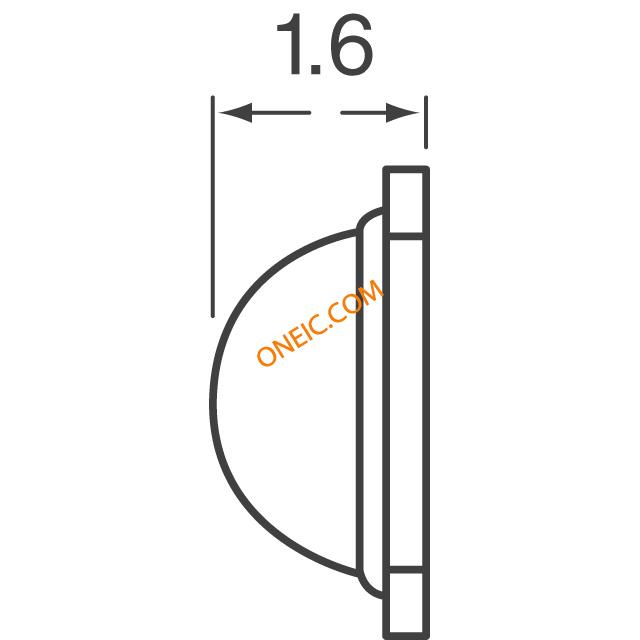

| Color | White, Cool | Height | 1.60mm |
| Weight | 0.005 | LED Color | :Cool White |
| Packaging | Reel | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 1411 (3528 Metric) |
| Lens Style/Size | Round with Domed Top, 2.8mm | Size / Dimension | 3.50mm L x 2.80mm W |
| Illumination Color | White | CRI (Color Rendering Index) | :80 |
Product Info
| Series | :P4 | CCT (K) | :8200K |
| Lens Type | Clear | Diode Type | LED |
| Number of Units | 1 | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
| Luminous Flux @ Current/Temperature | 2000 mcd | ||
Documents & Media
Similar Parts
NCP5005SNT1G
on semiconductor
LED DRVR 5Segment 3.3V/5V 5-Pin TSOP T/R LED Lighting Drivers ANA WHITE LED DRIVER IC LED DRIVR WHT COMPACT 5TSOP NCP5005SNT1G, LED Driver 5-Segments, 3.3, 5V, 5-Pin TSOP BACKLIGHT LED BOOST DRIVER, TSOP5 IC,NCP5005SNT1G ON Semiconductor LED 驱动器集成电路 TSOP
AL3158FSG-7
diodes, inc
Charge Pump STPUP 2.7V to 5.5V/5.4V to 11V 270mA 20-Pin QFN EP T/R INTERFACE LED DRIVER DUAL MODE CHARGE IC LED DRVR CHG/PMP QFN3030-20 Voltage Regulators - Switching Regulators High EFF 2.7V - 5.5V 3-Ch White LED 20mA LED DRVR, CHG/PMP, QFN3030-20 HIGH EFFICIENCY 1x/2x CHARGE PUMP FOR WHITE LED APPLICATIONS LED Lighting Drivers High EFF 2.7V - 5.5V 3-Ch White LED 20mA
C10363_LAIKA-3-W
ledil
LAIKA-3 Triple Lenses For SSC P3 And P4
CA10370_LAIKA-3-M
ledil
LAIKA-3 Triple Lenses For SSC P3 And P4 LED Lighting Lenses P4 LED 3-IN-1 LENS & SUBLENS SSC P4 50MM TRIPLE OPTIC, MED

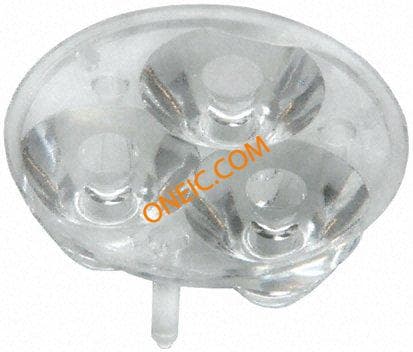

C10257_LAIKA-3-S
