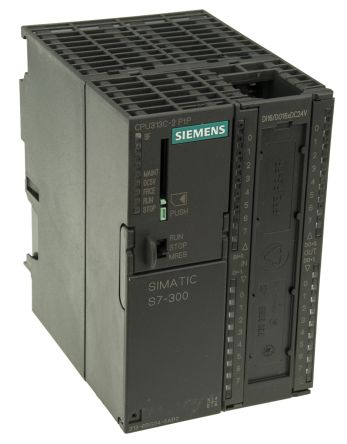

6ES7313-6BG04-0AB0
| Category |
对参数有疑问?问 AI 助手
Electrical
| Memory | 64 kB | Data Rate | 187.5 (RS485) k 位/s,19.2(RS422,全双工)k 位/s,38.4(RS422,半双工)k 位/s |
| Fall Time | 0.1(位操作)μs,0.2(字操作)μs,2(固定点)μs,3(浮点)μs | Interface | Computer |
| Baud Rates | 187.5 (RS485) kbit/s, 19.2 (RS422, Full Duplex) kbit/s, 38.4 (RS422, Half Duplex) kbit/s | Input Type | Digital |
| Memory Size | 64 kB | Output Type | Digital |
| Number of I/O | 32 | Response Time | 0.1 (Bit Operations) μs, 0.2 (Word Operations) μs, 2 (Fixed Point) μs, 3 (Floating Point) μs |
| Voltage Rating | 20.4 → 28.8 V dc | Current - Output | 500 mA |
| Number of Inputs | 16 (Digital) | Number of Outputs | 16 (Digital) |
| Current Rating (Max) | 500 mA | ||
Mechanical
| Depth | 130mm | Width | 120mm |
| Length | 125mm | Contact Type | RS422, RS485 |
| Mounting Type | Rack | Connector Type | RS422, RS485 |
| Size / Dimension | 125 x 120 x 130 mm | ||
Product Info
| Series | S7-300 | Language | AWL、FUP、图形、HiGraph、梯形逻辑、STEP 7、系统控制 |
| Programmable | AWL, FUP, Graph, HiGraph, Ladder Logic, STEP 7, System Control | Adapter Series | S7-300 Series |
| Number of Ports | 2 | Number of Inputs and Type | 32 |
| For Use With/Related Products | S7-300 Series | ||
Environmental
| Operating Temperature | +40°C | ||
