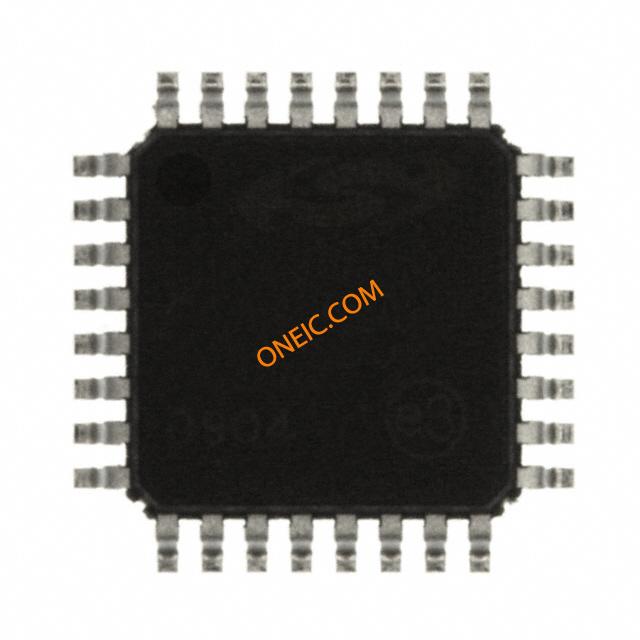

C8051F502-IQ
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Trays |
| Factory Pack Quantity | 250 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Not Compliant | N | Approval Agency | No |
Electrical
| Speed | 50 MHz | Timer | 4 x 16 bit |
| RAM Size | 4.25 KB | Core Size | 8-Bit |
| Core Type | 8051 | Interface | CAN/I2C/SMBus/SPI/UART |
| Clock Rate | 50 MHz | Resolution | 16 bit, 8 to 11 bit |
| Memory Size | 4.25 KB | Number of I/O | 25 |
| Number of Bits | 12 | Voltage Rating | 1.8 → 5.25 V |
| Watchdog Timer | 1 | Data Converters | A/D 25x12b |
| Frequency - Max | 24MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 2.5|3.3|5 V | RS-232 (422, 485) | 1 |
| Resolution (Bits) | 12bit | Number of Channels | 0 |
| Analog Input:Output | 2 | Program Memory Size | 64 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 32 |
| Voltage - Supply (Min) | 5.25 | Frequency (Center/Band) | 16bit |
| Number of Bits per Element | 12 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.25 V |
Mechanical
| Width | 7mm | Height | 1.45mm |
| Length | 7mm | Weight | 0.005584 oz |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 32 | Package / Case | 32PQFP |
| Package Cooled | QFP | Package Quantity | PQFP |
| Size / Dimension | 7 x 7 x 1.45mm | Number of Positions | 32 |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 1(16 bit), 1(8 to 11 bit) |
Product Info
| SPI | 1 | USB | 0 |
| Series | C8051 | Features | Programmable Counter Array |
| Protocol | 1 | On-Chip RAM | 32-chx12-bit |
| Peripherals | POR, PWM, Temp Sensor, WDT | Architecture | CISC |
| Connectivity | SMBus (2-Wire/I²C), CAN, LIN, SPI, UART/USART | Core Processor | 8051 |
| Number of Timers | 4 | RF Family/Standard | C8051F50x |
| DigiKey Programmable | Yes | Non-Disclosure Agreement | N |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- LIN Bootloader AppNote
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
