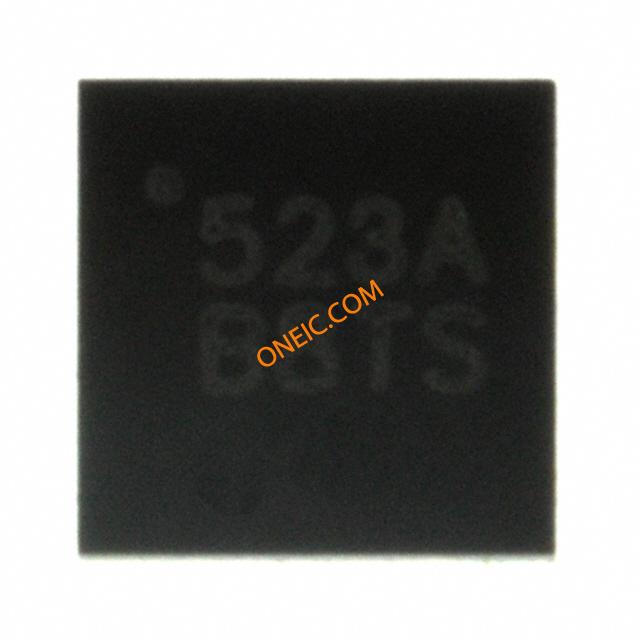

C8051F523A-IM
| Manufacturer | |
| Description | MCU 8-bit C8051F52xA 8051 CISC 4KB Flash 2.5V/3.3V/5V 10-Pin DFN EP IC 8051 MCU 4K FLASH 10DFN 8-bit Microcontrollers - MCU 4KB 12ADC 125C MCU |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 336-1491-5 | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 122 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Speed | 25 MHz | RAM Size | 256 byte |
| Core Size | 8-Bit | Core Type | 8051 |
| Interface | SPI/UART | Clock Rate | 25 MHz |
| Memory Size | 256 B | Number of I/O | 6 |
| Number of Bits | 12 | Voltage Rating | 1.8 |
| Data Converters | A/D 6x12b | Oscillator Type | Internal |
| Voltage - Supply | 2.5|3.3|5 V | Resolution (Bits) | 12 bit |
| Number of Channels | 6 | Program Memory Size | 4 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 6 |
| Voltage - Supply (Min) | 2.7|5.25 | Number of Counter/Timers | 3 Timer |
| Number of Bits per Element | 12 bit | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.25 V |
Mechanical
| Height | 0.83 mm | Length | 3 mm |
| Weight | 0.000862 oz | Packaging | Tube |
| Lead Style | No Lead | Mounting Style | SMD/SMT |
| Package / Case | 10DFN EP | Package Quantity | DFN EP |
| Number of Positions | 10 | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | C8051 | On-Chip RAM | 6-chx12-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | Architecture | CISC |
| Connectivity | LIN, SPI, UART/USART | Manufacturer | Silicon Labs |
| Core Processor | 8051 | Number of Timers | 3 |
| RF Family/Standard | C8051F52xA | DigiKey Programmable | Yes |
| Number of Inputs and Type | 6 I/O | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- C8051F52x-F53x.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
