AS196-307LF
| Manufacturer | |
| Description | RF Switch SPDT 900MHz to 6GHz 25dB 16-Pin LPCC IC SW SPDT LF-6GHZ GAAS 16LPCC |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1007-2 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| IIP3 | 46dBm (typ) | P1dB | 27dBm (typ) IP1dB |
| Circuit | SPDT | Impedance | 50 Ohm |
| Isolation | 30dB @ 6GHz (typ) | Frequency - Max | 6000 MHz |
| Voltage - Supply | 5 V | Voltage - Isolation | 25 dB |
| Frequency - Output 2 | 300kHz | Insertion Loss (Max) | 2 dB |
| Switch Function/Rating | Single SPDT | Frequency Bands (Low / High) | 900 to 6000 MHz |
Mechanical
| Packaging | Tape & Reel (TR) | Package / Case | 16LPCC |

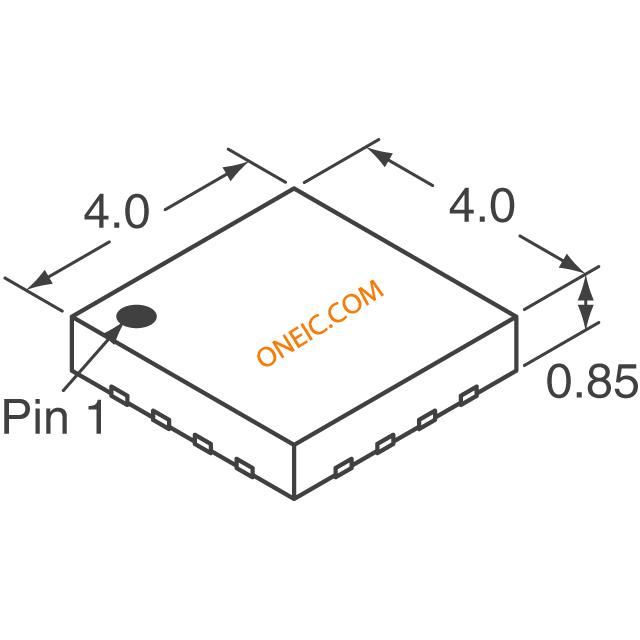

| Supplier Device Package | 16-LPCC (4x4) | ||
Product Info
| RF Type | GSM, ISM, PCS, WCDMA | Topology | Absorptive |
| Switch Type | SPDT | Number of Switches | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
