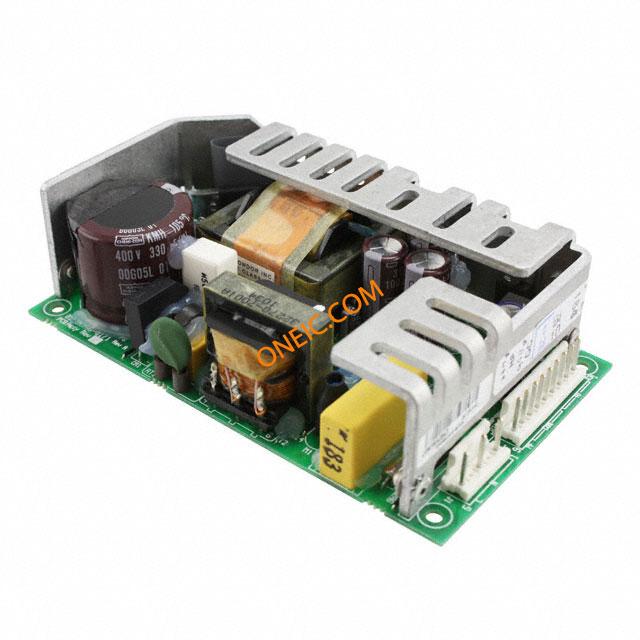

GLC75-12G
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 12V 6.3A 75W 12-Pin PS SWITCHER 75W 12V 6.3A SWITCHINGPOWERSUPPLY,90-264VINPUT,75W,OUTPUT:12V@6.3A,LOWCOST |
| Category |
商业参数
| 交货时间 | 62 Days | 子类别 | AC to DC Power Supply |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CE, CSA, EN, IEC, UL |
电气参数
| 输出端 | 12VDC@6.3A | 频率 | 47 to 63 Hz |
| 操作方式 | Switching | 效率 | 85 % |
| 最大功率 | 75 W | 功率（瓦） | 75W |
| 额定输出功率 | 75W | 额定电压 | 90 to 264 V |
| 电源调整率 | 1% | 负载调整率 | 1% |
| 输出电流 | 6.3 A | 输出数量 | 1 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 75W |
| 最大额定电流 | 2.3 A | 最小输入电压 | 12V |
机械参数
| 安装类型 | Chassis Mount | 安装样式 | Panel |
| 主要材料 | AC-DC | 尺寸/外形 | 5.75" L x 3.40" W x 1.56" H (146.0mm x 86.4mm x 39.7mm) |
产品信息
| 类型 | Switching | 产品特性 | 2-YearsWarranty |
| 应用 | Commercial | 制造商全称 | GLC75Series |
| 配置 | OpenFrame | 适用产品/相关产品 | GLC75-12 |
环境参数
| 工作温度 | 0 to 50 °C | ||
