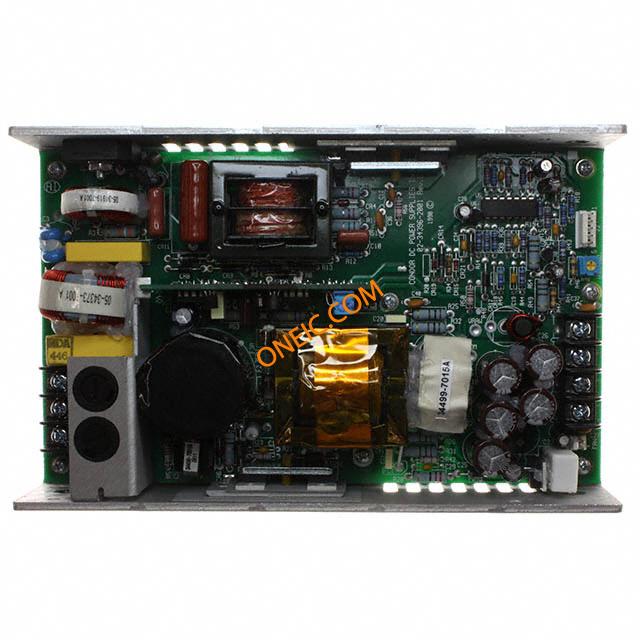

GPFM250-15
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 15V 12A 250W PWR SPLY MEDICAL PFC 250W 15V |
| Category |
Business
| Other Names | 271-2148 | Standard Package | 1 |
Compliance
| RoHS | Vendor undefined / Vendor undefined | EU RoHS | Not Compliant |
| Approval Agency | CE, IEC, UL | ||
Electrical
| Frequency | 47 to 63 | Efficiency | 80% |
| Power - Max | 250 | Power (Watts) | 250W |
| Voltage Rating | 15 | Line Regulation | 2% |
| Load Regulation | 2% | Current - Output | 15 VDC @ 12A |
| Number of Outputs | 1 | Power Supply Type | Switching (Open Frame) |
| Power (Watts) - Max | 250W | Voltage - Input (Min) | 15V |
Mechanical
| Mounting Type | Chassis Mount | Size / Dimension | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
Product Info
| Type | Switching | Style | Medical U Frame |
| Applications | Medical | ||
Environmental
| Operating Temperature | 0°C ~ 50°C | ||
