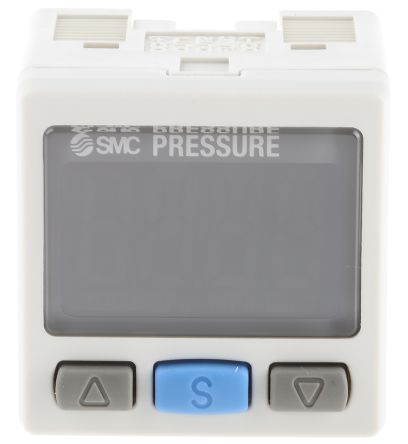

ISE30A-01-F-L
| Manufacturer | |
| Description | Digital pres switch,4-20mA out,w/lead Pressure switch -0.1...1 MPa, ISE30A-01-F-L, SMC SMC ISE30A 系列 压力开关, R 1/8 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| LED | 是 | Output | 4...20 mA |
| Accuracy | 0.2 | Sensor Type | Pressure sensor |
| Sensing Range | Gauge pressure | Visible Output | Yes |
| Voltage Rating | 12 → 24V dc | Number of Outputs | 1 |
| Voltage - Supply (Min) | 12...24 VDC | Number of Outputs and Type | 1 |
| Current - Average Rectified (Io) | max. 80 mA without load | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Thread Size | R | Pressure (PSI) | R1/8" With M5 Internal Thread |
| Pressure Range | -0.1...1 MPa | Width - Overall | 30 x 30 x 42.5 mm |
| Writable Memory | Air, Gas | Maximum Pressure (PSI) | 1 MPa |
| Thread/Screw/Hole Size | 1/8 in | ||
Product Info
| Series | ISE30A | Connectivity | R 1/8 |
| Display Units | 0.001 | Adapter Series | ISE30A |
| Electrical Life | Cable, 2 m | Connection Method | R 1/8 |
Environmental
| Fluid Type | 空气，气体 | Seal Rating | IP40 |
| Pressure Type | Positive Pressure | Ingress Protection | IP40 |
| Operating Pressure | -0.1MPa | Operating Temperature | +50°C |
