点击放大查看

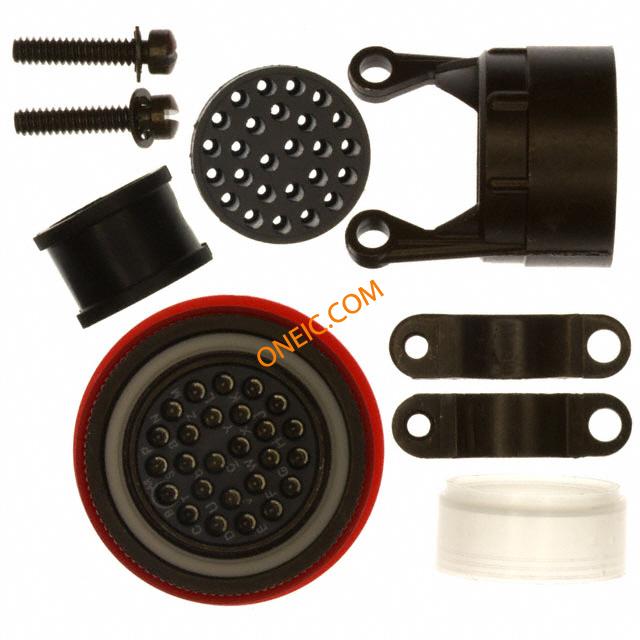

85106EC1626P50
| Manufacturer | |
| Description | CONN PLUG 26POS STRAIGHT W/PINS CONN PLUG STRAIGHT 26POS W/PINS 26 Way Male Cable Mount Connector,Male Contacts,Shell Size 16,MIL-DTL-26482 Souriau 26路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸16, MIL-DTL-26482 |
| Category |
商业参数
| 其他名称 | S85106EC1626P50 | 标准包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 军用标准 | MIL-DTL-26482 |
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 外形尺寸(长x宽) | 16 | 包装方式 | Bulk |
| 外壳尺寸 | 16 | 方向 | N (Normal) |
| 端接方式 | Solder | 触头类型 | 公插 |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Olive Drab Cadmium |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 触头材料 | Copper Alloy |
| 端接排数 | 焊接 | 第一触头极性 | Male |
| 触点数 | 26 | 位数 | 26 |
| 外壳尺寸-插件 | 16-26 | 外壳材料及表面处理 | Olive Drab Cadmium Plated |
产品信息
| 连接器性别 | Male | 产品特性 | Cable Clamp |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
