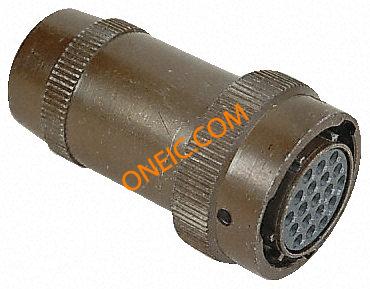

85106J1419S50
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Non Compliant | Tariff No | 85369010 |
| Military Standard | MIL-DTL-26482 | ||
Electrical
| Current Rating (Max) | 7.5A | ||
Mechanical
| Weight | 0.048 | Packaging | Bulk |
| Shell Size | 14 | Orientation | N (Normal) |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Olive Drab Cadmium | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Insertion Angle | :14-19 | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | 1st Contact Gender | Female |
| Number of Contacts | 19 | Contact Termination | :Solder |
| Number of Positions | 19 | Shell Size - Insert | 14-19 |
| Shell Material, Finish | Olive Drab Cadmium Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Gender | Male | Series | :- |
| Features | Sealing Gland | ||
Environmental
| Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Sourcing & traceability
- Datasheet
- 851 Series Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
