JBXFD1G05MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 5P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
商业参数
| 商标名 | JBX | 其他名称 | SOU1554 |
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | Yes | ||
电气参数
| 额定电压 | 660VDC | 最大额定电流 | 9A |
机械参数
| 直径 | 12 mm | 包装方式 | Bulk |
| 出线方向 | No | 方向 | G |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触点形式 | 5Signal | 触头类型 | 5Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Chrome Over Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Push-Pull | 安装样式 | Cable |
| 触头材料 | Brass | 总长度 | 45 mm |
| 第一触头极性 | M | 触点数 | 5 |
| 位数 | 5 | 外壳尺寸-插件 | 1 |
| 外壳材料及表面处理 | Brass, Chrome over Nickel | 接触镀层厚度 | 19.7µin (0.50µm) |
产品信息
| 类型 | Push-Pull | 连接器性别 | PL |
| 系列 | JBX | 产品特性 | Cable Clamp, Shielded |
| 产品子类型 | Connectors | 射频系列/标准 | JBX |
环境参数
| 防护等级 | IP40 | 工作温度 | -55°C ~ 125°C |
Documents & Media
相关型号
JBXPC1G05FCSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Cable Mnt Crimp Sz 1 CONN RCPT 5POS CABLE MNT CRIMP JBX1FREEREC-5CRIMP
JBXEA1G05FQSDS
Souriau
Circular Push Pull Connectors 5P Socket Receptacle R/A PCB Tail Size 1 Conn Push-Pull F 5 POS Solder ST Panel Mount 5 Terminal 1 Port DBL NUT RCPT 5POS FEMALE RA PCB RIGHTANGLERECSHELL1
JBXPC1G05FSSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Cable Mt Solder Sz 1 CONN RCPT 5POS CABLE MT SOLDER JBX1FREEREC-5SOLDER
JBX1MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 1, Black Connector Accessories Protective Boot Elastollan Black Shell Size 1 CONN BOOT PROTECTIVE SIZE 1 BLK CIRCULARPUSHPULLCONNECTOR,JBXBOOTBLACK

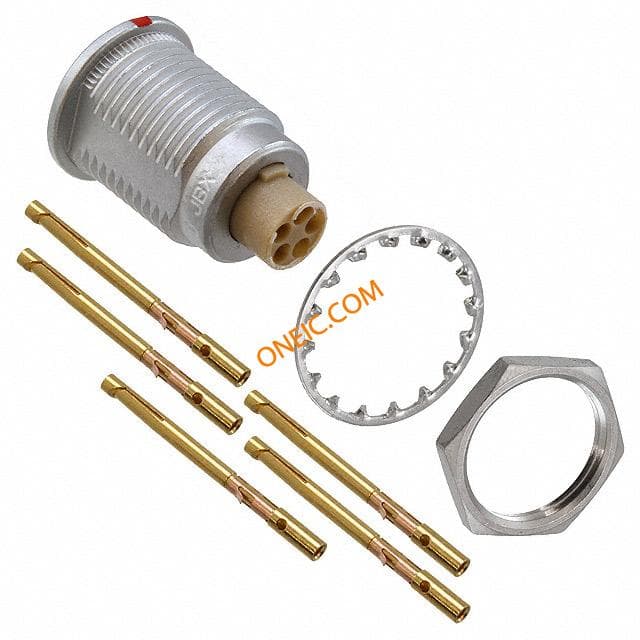

JBXER1G05FCSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Crimp Panel Mnt Sz 1 CONN RCPT 5POS FRONT MNT CRIMP CIRCULARPUSHPULLCONNECTOR,RCPT,SHELL1,P5,CRIMP,24-20

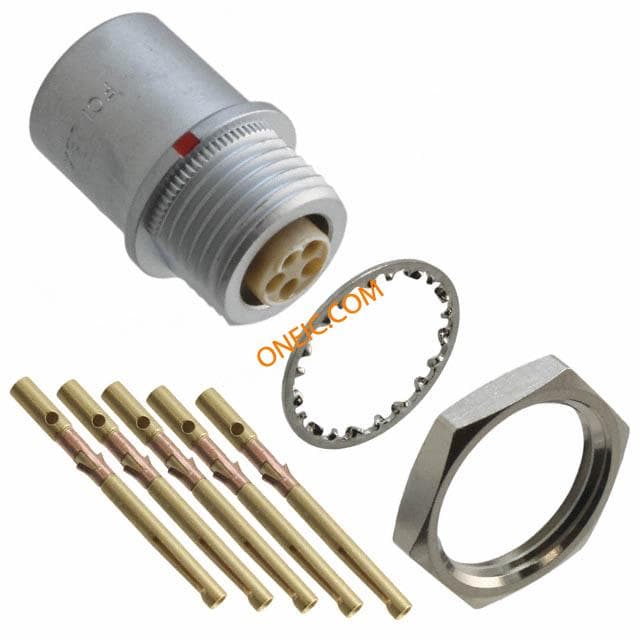

JBXED1G05FCSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Crimp Shell Size 1 CONN RCPT PROTRUDING 5POS CRIMP Receptaclesize1,5cri
JBXER1G05FSSDSR
Souriau
Circular Push Pull Connectors 5P Socket Receptacle Solder Panel Mt Sz 1 CONN RCPT 5POS PANEL MT SOLDER JBXrecept1-05red

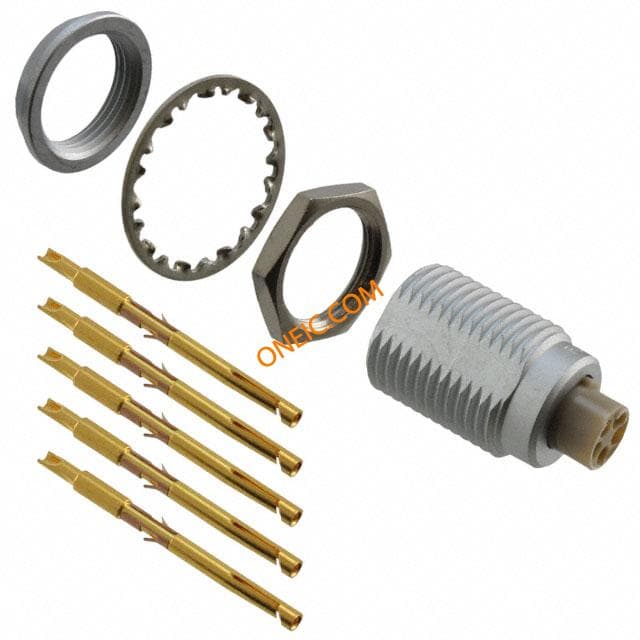

JBXEA1G05FSSDS
