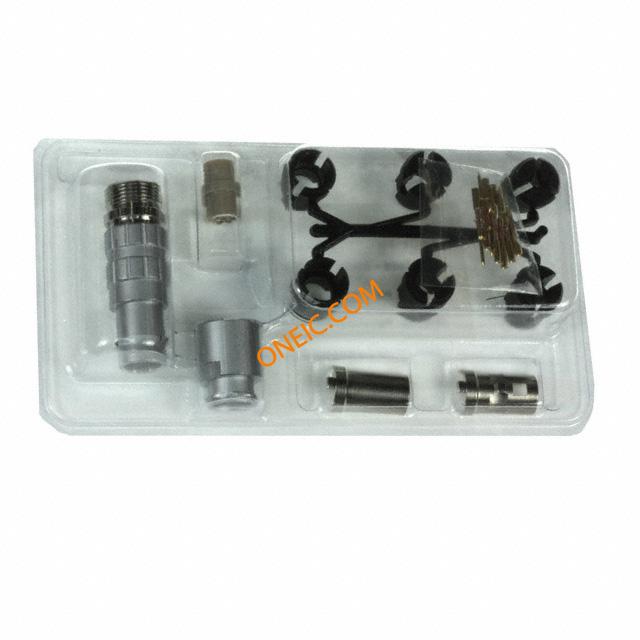

JBXFD1G08MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 8P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
商业参数
| 商标名 | JBX | 其他名称 | SOU1559 |
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600VDC | 最大额定电流 | 5A |
机械参数
| 直径 | 12 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 1 |
| 导线线规 | 22 | 方向 | G |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触头类型 | 8Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Chrome Over Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Push-Pull |
| 安装样式 | Cable | 外壳材料（壳体） | Hybrid |
| 触头材料 | Brass | 总长度 | 45 |
| 端接样式 | Crimp | 第一触头极性 | M |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 1 | 外壳材料及表面处理 | Brass, Chrome over Nickel |
| 接触镀层厚度 | 19.7µin (0.50µm) | ||
产品信息
| 类型 | Push-Pull | 连接器性别 | PL |
| 系列 | JBX | 产品特性 | Cable Clamp, Shielded |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP40 | 工作温度 | -55°C ~ 125°C |
Documents & Media
相关型号
JBXPC1G08FSSDSR
Souriau
Circular Push Pull Connectors 8P Socket Receptacle Cable Mt Solder Sz 1 CONN RCPT 8POS CABLE MT SOLDER JBX1FREEREC-8SOLDER

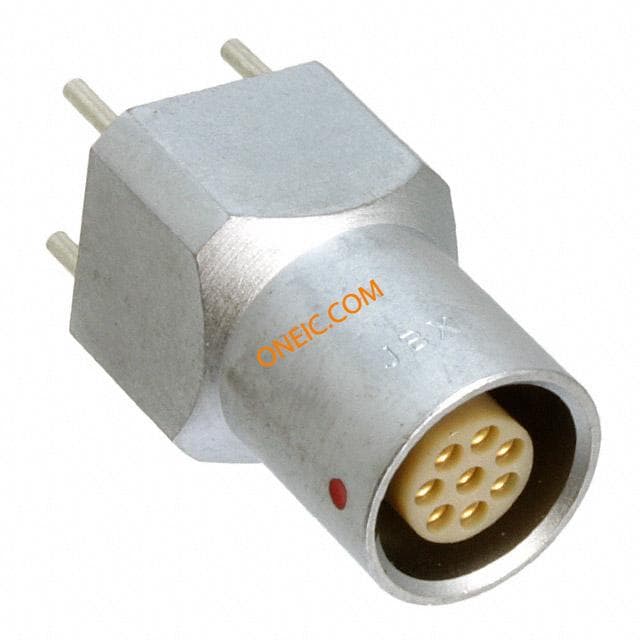

JBXEZ1G08FPSDSR
