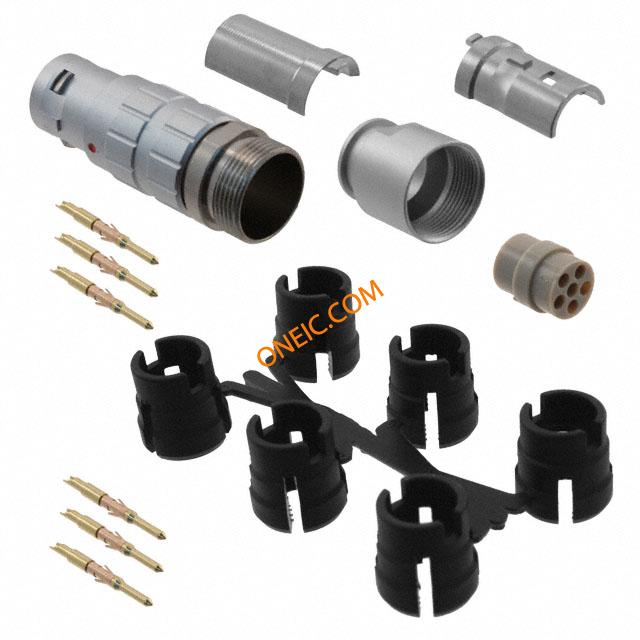

JBXFD2G06MSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 6 POS Solder ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS STRAIGHT SOLDER JBXPLUGFD |
| Category |
商业参数
| 商标名 | JBX | 其他名称 | SOU1568 |
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 900VDC | 最大额定电流 | 12A |
机械参数
| 直径 | 15 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | G |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Chrome Over Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Push-Pull |
| 触头材料 | Brass | 总长度 | 52 |
| 端接样式 | Solder | 第一触头极性 | M |
| 触点数 | 6 | 位数 | 6 |
| 外壳尺寸-插件 | 2 | 外壳材料及表面处理 | Brass, Chrome over Nickel |
| 接触镀层厚度 | 19.7µin (0.50µm) | ||
产品信息
| 类型 | Push-Pull | 连接器性别 | PL |
| 系列 | JBX | 产品特性 | Cable Clamp, Shielded |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP40 | 工作温度 | -55°C ~ 125°C |
Documents & Media
相关型号
JBXER2G06FSSDSR
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Solder Panel Mt Sz 2 CONN RCPT 6POS PANEL MT SOLDER JBXrecept2-06red
JBX2MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Black Connector Accessories Protective Boot Elastollan Black Shell Size 2 CONN BOOT PROTECTIVE SIZE 2 BLK CIRCULARPUSHPULLCONNECTOR,PROTECTIVEBOOT,BLACK
JBX2MPA
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Blue CONN BOOT PROTECTIVE SIZE 2 BLUE 335D7023F5

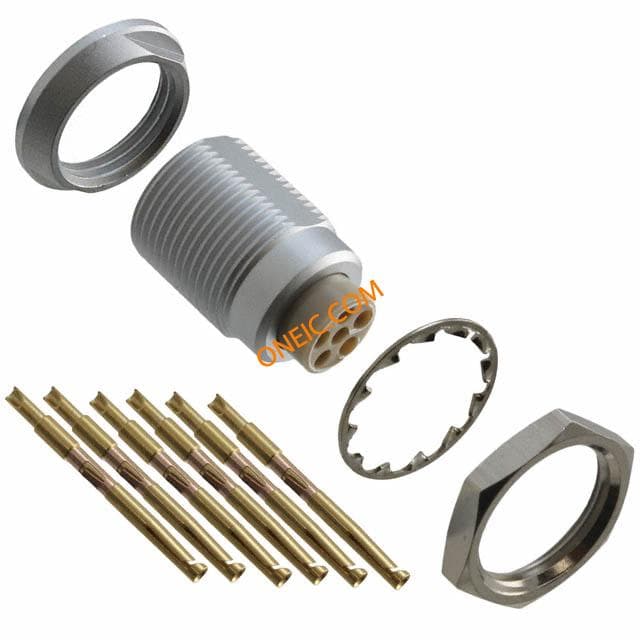

JBXEA2G06FSSDS
