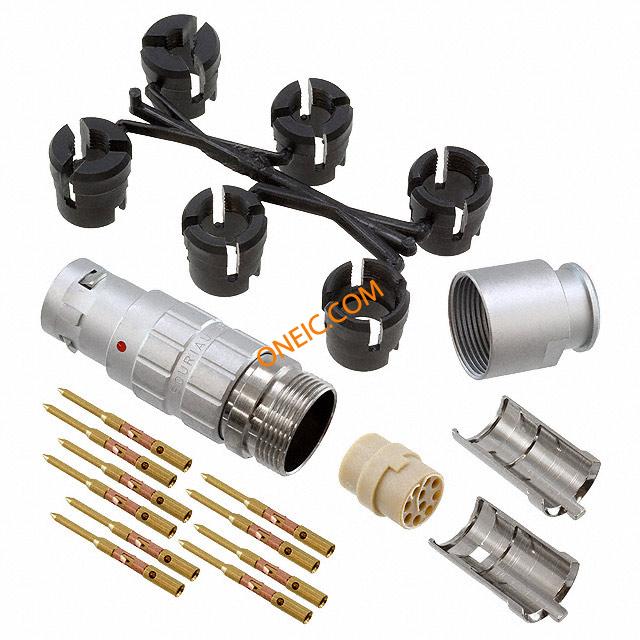

JBXFD2G10MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN PLUG 10POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,CRIMP |
| Category |
Business
| Tradename | JBX | Other Names | SOU1707 |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 8A |
Mechanical
| Size | 2 | Diameter | 15 |
| Packaging | Bulk | Cable Exit | No |
| Orientation | G | Termination | Crimp |
| Contact Type | 10Signal | Mounting Type | Cable Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Contact Material | Brass | Length - Overall | 52 |
| 1st Contact Gender | M | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | PL |
| Features | Cable Clamp, Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
