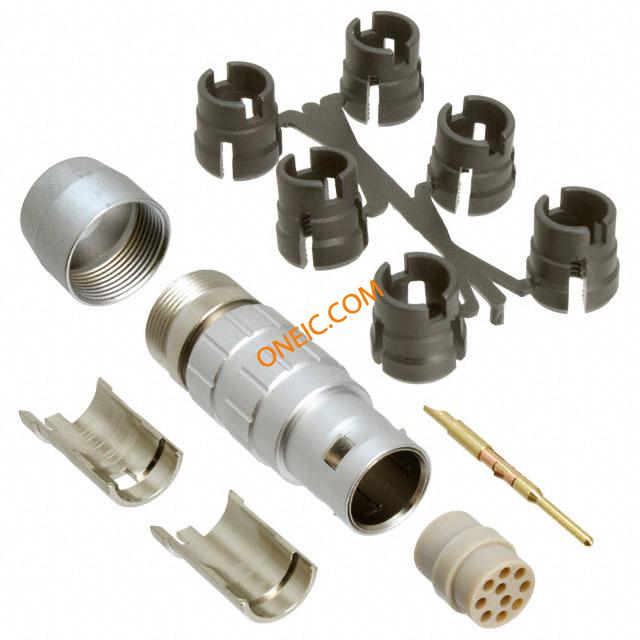

JBXFD2G10MSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P Strt Pin Plug Solder Shell Size 2 CONN PLUG 10POS STR CABLE SOLDER CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,SOLDER,24 |
| Category |
Business
| Tradename | JBX | Other Names | SOU1709 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 8A |
Mechanical
| Size | 2 | Packaging | Bulk |
| Shell Size | 2 | Orientation | G |
| Shell Style | Plug | Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Termination Style | Solder | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | CablePlug | Series | JBX |
| Features | Cable Clamp, Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
