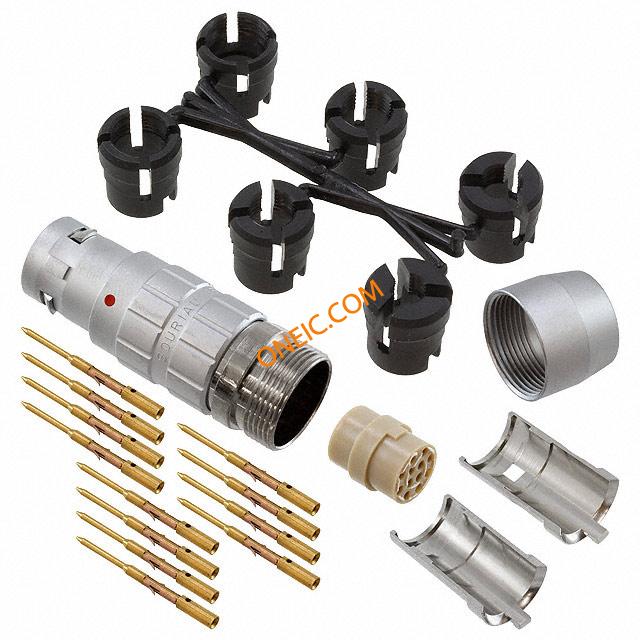

JBXFD2G12MCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P Strt Pin Plug Crimp Shell Size 2 CONN PLUG 12POS STR CABLE CRIMP JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1710 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 7A |
Mechanical
| Packaging | Bulk | Shell Size | 2 |
| Wire Gauge | 26 | Orientation | G |
| Shell Style | Plug | Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Chrome over Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Hybrid | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
