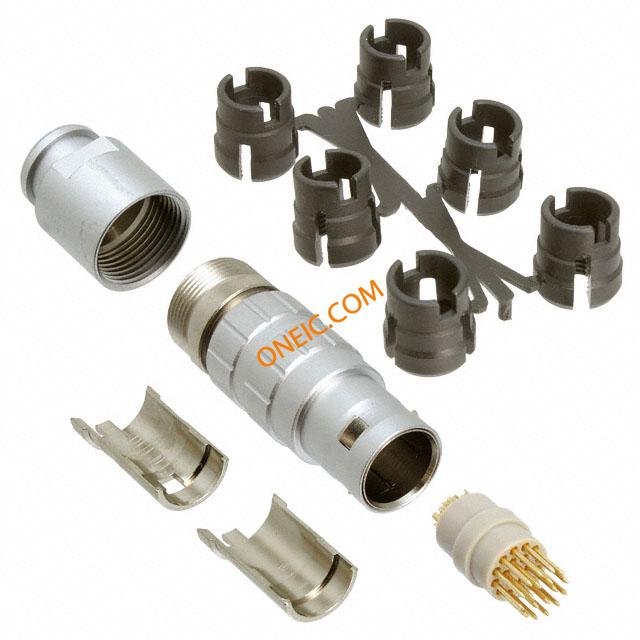

JBXFD2G16MSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 16P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 16 POS Solder ST Cable Mount 16 Terminal 1 Port CONN PLUG 16POS STRGHT PIN SLD JBXPLUGFD |
| Category |
商业参数
| 商标名 | JBX | 其他名称 | SOU1830 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 730VDC | 最大额定电流 | 6A |
机械参数
| 直径 | 15 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | G |
| 端接方式 | Solder | 触头类型 | 16Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Chrome Over Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Push-Pull | 触头材料 | Brass |
| 总长度 | 52 | 第一触头极性 | M |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | 2 | 外壳材料及表面处理 | Brass, Chrome over Nickel |
| 接触镀层厚度 | 19.7µin (0.50µm) | ||
产品信息
| 类型 | Push-Pull | 连接器性别 | PL |
| 产品特性 | Cable Clamp, Shielded | ||
环境参数
| 防护等级 | IP40 | 工作温度 | -55°C ~ 125°C |
