点击放大查看

MBG12P1

Manufacturer	SOURIAU SAS
Description	Standard Circular Connector 12P Socket Plug 12 way Cable Plug, socket contacts Souriau MBG 系列 12路电缆安装直向连接器插头 , 母触点, 推挽式接合
Category	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别

Standard Circular Connector

工厂包装数量

合规参数

RoHS

RoHS Compliant

机械参数

外形尺寸(长x宽)	19.43mm	外壳尺寸	19.43mm
方向	直	外壳样式	Plug
端接方式	Crimp	触头类型	母座
安装类型	Straight	连接器类型	公插
安装样式	Wire	外壳材料（壳体）	Plastic
连接器用途	Push-Pull	壳体材料	Thermoplastic
端接排数	压接	第一触头极性	Female
配接方向	Self Locking	触点数	12

产品信息

连接器性别	Male	系列	MBG
产品子类型	Connectors

环境参数

工作温度

+125°C

Documents & Media

PDF Document

611304.pdf

PDF Document

124716.pdf

相关型号

SC16ML11D70

Souriau

Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18 AWG GOLD CIRCULAR CONTACT, SKT, 18-16 AWG, CRIMP

¥9.6560

详情

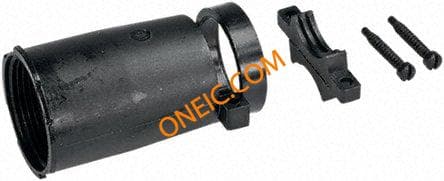

MBG12S1
