UT0W6106SH
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Trim Trio | Other Names | SOU1076 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 150 V | Number of Poles | 6 |
| Connector Impedance | 标准 | Current Rating (Max) | 7.5 A |
| Voltage - Protection Level (VP) (2416) | IP 68/69 K | ||
Mechanical
| Outline | 10 | Packaging | Bulk |
| Shell Size | 10 | Orientation | N (Normal) |
| Contact Size | 20 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug for Female Contacts | Contact Finish | 镍 |
| Fastening Type | Bayonet Lock | Shell Material | Zinc Alloy |
| Connector Style | straight | Insertion Angle | 10-6 |
| Locking Feature | Bayonet lock | Contact Material | CuNi+Au |
| Housing Material | AlZn alloy | Termination Rows | 嵌入式 |
| Termination Style | Crimp Connection | 1st Contact Gender | Without Socket Contacts |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | 1st Connector Gender | Female |
| Shell Material, Finish | Zinc, Nickel Plated | ||
Product Info
| Note | Contacts Not Provided | Series | UT0W |
| Features | Shielded | Product Type | Cable Plugs |
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40...+105 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
UT010JCSL
Souriau
$107.0234
Details
UT010JCS
Souriau
$77.3432
Details
UT0W0106PH
Souriau
$97.4440
Details
UT0W7106PH
Souriau
$158.3040
Details
UT010AC
Souriau
$106.1484
Details

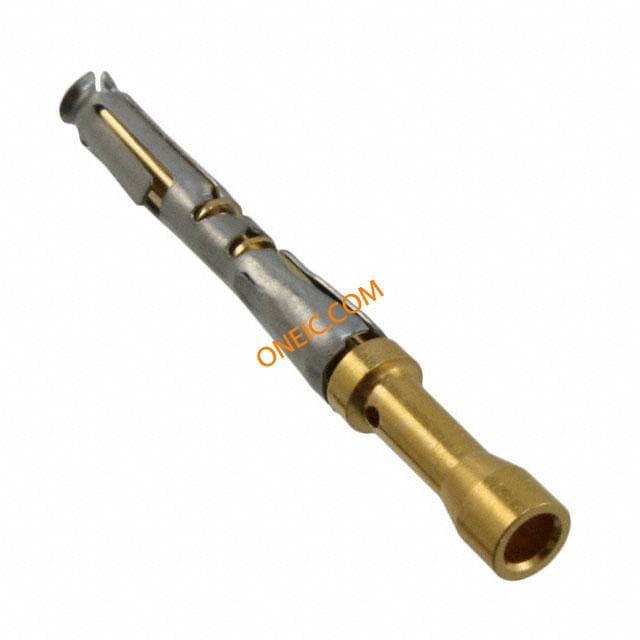

RC20W3K
Souriau
$9.2895
Details

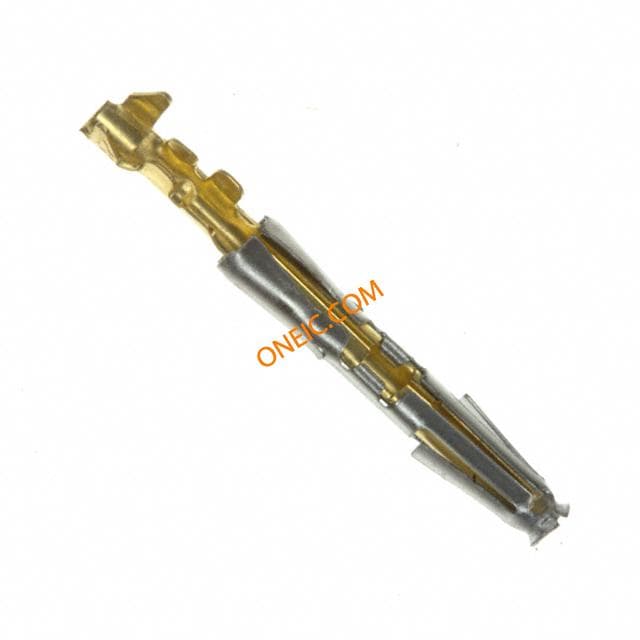

SC24WL-3S25
Souriau
$6.2900
Details

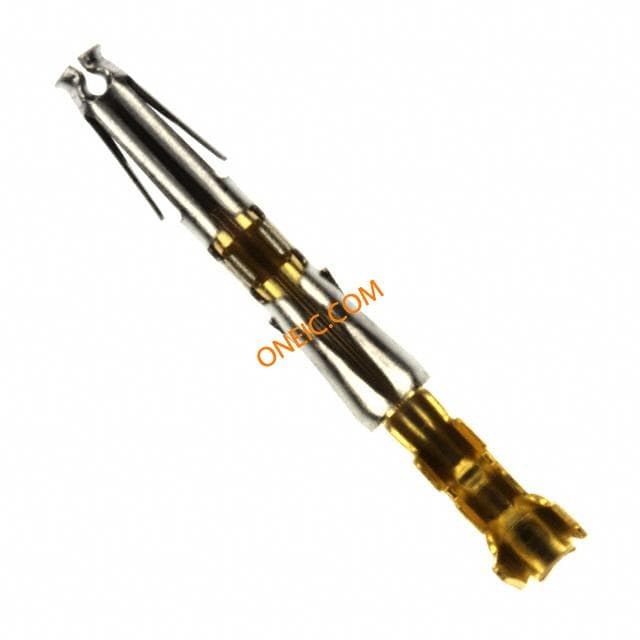

SC20WL-3S25
Souriau
$6.4592
Details

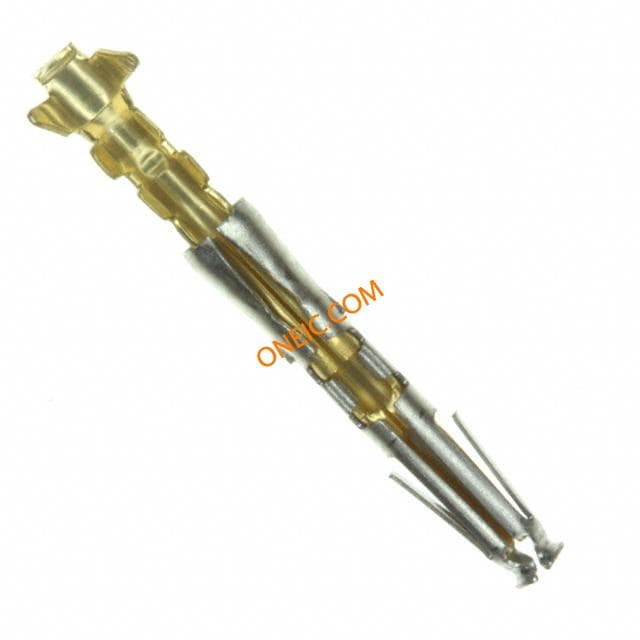

SC24W-3S25
Souriau
$3.9573
Details

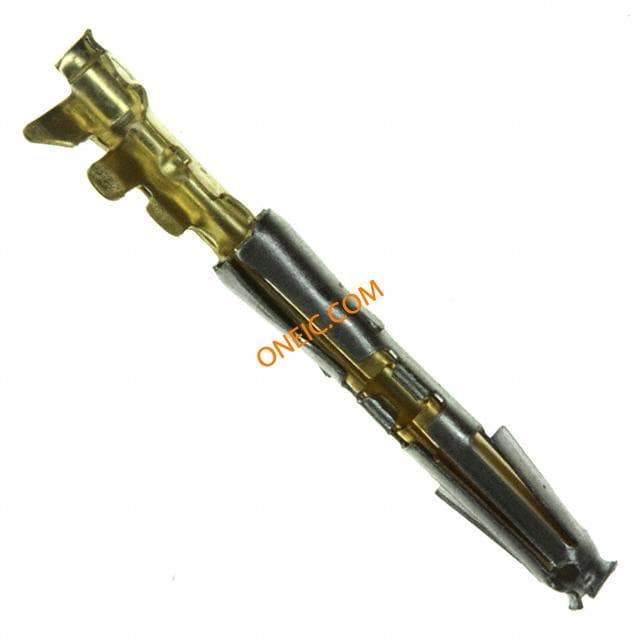

SC20W-3S25
Souriau Connection Technology
$4.3761
Details
SC24WL-3TK6
Souriau Connection Technology
$7.8306
Details

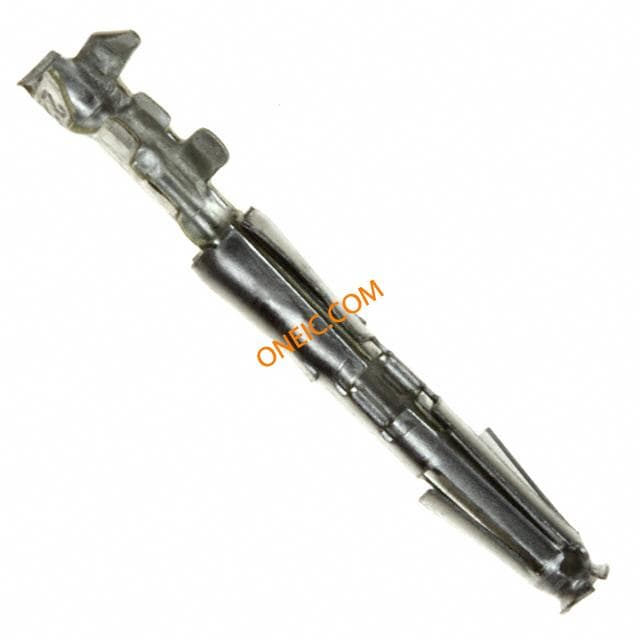

SC20WL-3TK6
