UTG020-28S
| Manufacturer | |
| Description | Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 Conn CPC With Metal Coupling SKT 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag CONN RCPT FEMALE 28POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size20,for28socket Female receptacle Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG020-28S, Souriau |
| Category |
Business
| Tradename | Trim Trio | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 36.3 | Voltage Rating | 500 |
| Number of Poles | 28 | Current Rating (Max) | 13 A |
Mechanical
| Depth | 36.5 | Height | 36.5 |
| Packaging | Bag | Cable Exit | No |
| Shell Size | 20 | Orientation | Keyed |
| Shell Style | Square Flange | Termination | Crimp |
| Contact Size | 16 | Contact Type | 28Signal |
| Mounting Type | Wall Mount | Connector Type | Receptacle for Female Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | Wall |
| Shell Material | Thermoplastic | Connector Style | with flange |
| Insertion Angle | 20-28 | Locking Feature | Bayonet locking |
| Contact Material | CuNi+Au | Housing Material | Metal |
| Length - Overall | 27 | Termination Style | Crimp Connection |
| 1st Contact Gender | SKT | Diameter - Outside | 31.7 |
| Number of Contacts | 28 | Number of Positions | 28 |
| Shell Size - Insert | 20-28 | 1st Connector Gender | Female |
| Shell Material, Finish | Thermoplastic, Glass Filled | Shell Size - Insert (Convert To) | 20-28 |
Product Info
| Note | Contacts Not Provided | Type | CPC With Metal Coupling |
| Gender | RCP | Series | UTG |
| Product Type | Receptacles | Amplifier Type | 27 |
Environmental
| Operating Temperature | -55...+125 °C | ||
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT062028PH
Souriau
Standard Circular Connector 28P Strt Pin Plug Size 20 Conn Metal Circular PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS MALE PIN HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE PIN Cable plug UT0 28-pin Trim Trio UT0 28P Male 20, UT062028PH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 公触点, 卡口式接合
UTFD17B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 20 CONN SEALING FOR WALL RCPT #20 UTFD系列 法兰 密封填料, 外壳尺寸20, 31.8mm直径, 使用于UTP-UTG-UT0-UT0W, -40 → +105 °C
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

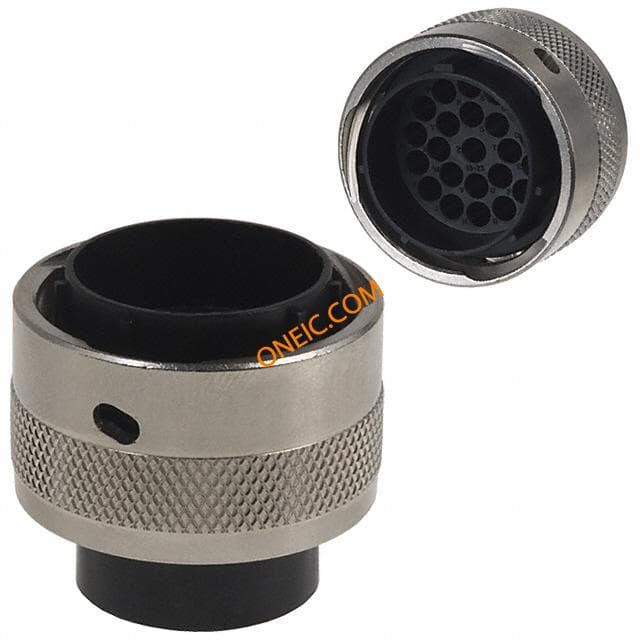

UTG620-28PN
