NKR131SB
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1119 | Standard Package | 1 |
Compliance
| Rad Hardened | No | ||
Electrical
| Display Type | 7-Segment | Power - Rated | 40 W |
| Current - Output | 10mA | Voltage - Supply | 1.7V |
| Wavelength - Peak | 660nm | Number of Elements | 8 |
| Current - Trip (It) | 10 mA | LED Forward Current | 20 mA |
| LED Forward Voltage | 2 V | Millicandela Rating | 2.8mcd |
| Power Dissipation (Max) | 40mW | Voltage - Gate Trigger (Vgt) (Max) | 4 V |
Mechanical
| Color | Red | Depth | 7 mm |
| Height | 5 mm | Length | 4 mm |
| Packaging | Tray | Common Pin | Common Cathode |
| Light Color | Red | Mounting Type | Through Hole |
| Package / Case | 10-DIP (0.209", 5.30mm) | Package Cooled | PDIP |
| Height (Inches) | 8 mm | Length - Overall | 11 mm |

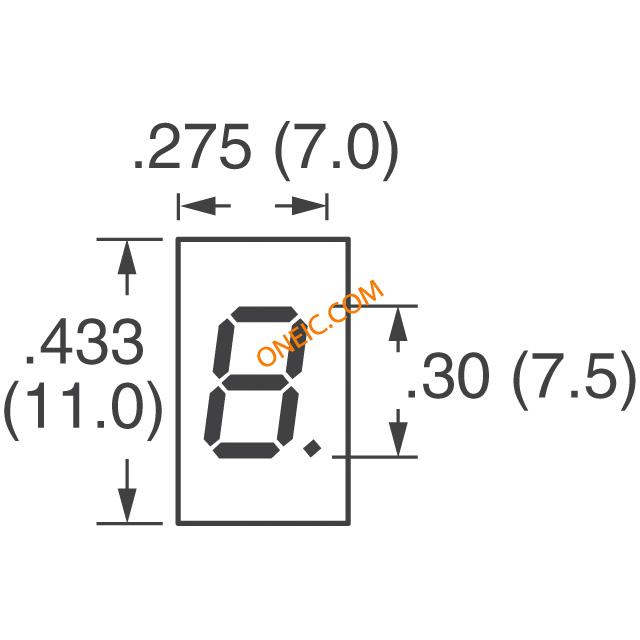

| Size / Dimension | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | Number of Positions | 10 |
| Thickness - Overall | 5 mm | ||
Product Info
| Type | Module | DELETED | Compliant |
| Configuration | Common Cathode | Display Format | Numeric |
| Digit/Alpha Size | 0.31" (8.00mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | Commercial | Luminous Flux @ Current/Temperature | 2800ucd |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 131S, 133S Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
