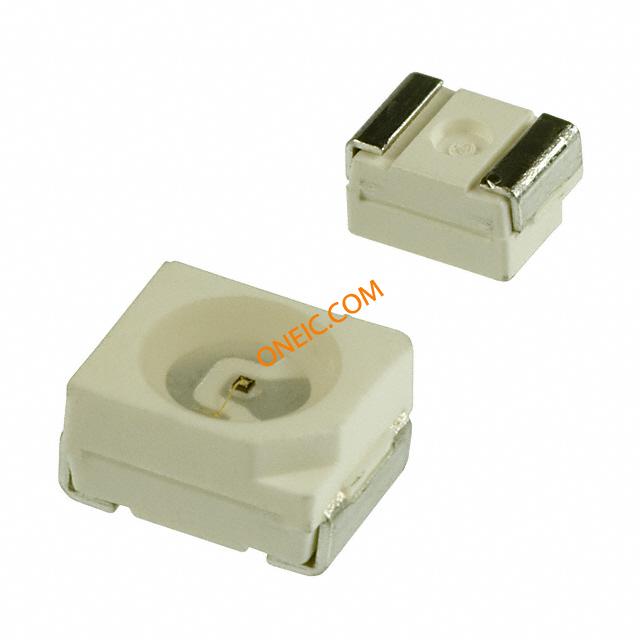

FR1104B-TR
| Manufacturer | |
| Description | LED Uni-Color Red 645nm 2-Pin PLCC T/R LED 645NM RED CLEAR 2-PLCC SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1161-1 | Standard Package | 2,000 |
| Standard Package Name | PLCC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Lamp Output | No | Luminous Flux | 70mcd |
| Viewing Angle | 120° | Current - Output | 20mA |
| Voltage - Supply | 2V | Wavelength - Peak | 645nm |
| LED Forward Voltage | 2.5 | Millicandela Rating | 120mcd |
| Wavelength - Dominant | 632nm | Power Dissipation (Max) | 81 |
| Current - Peak Pulse (10/1000us) | 30 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Red | Width | 3.2 |
| Height | 1.90mm | Packaging | Tape and Reel |
| Lead Style | J-Lead | Lens Style | Circular |
| Lens Diameter | 2.4x2.4x0.85 | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Package / Case | 2-PLCC |
| Lens Style/Size | Round with Flat Top, 2.4mm | Material - Core | AlGaInP |
| Length - Overall | 2.8 | Package Quantity | PLCC |

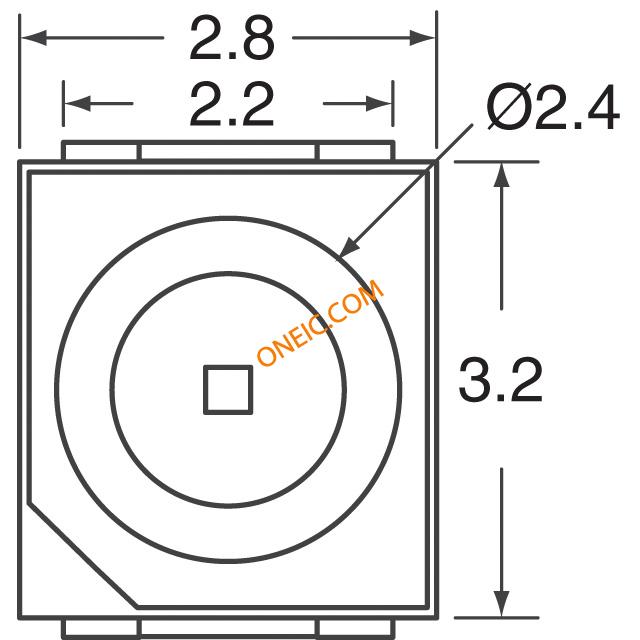

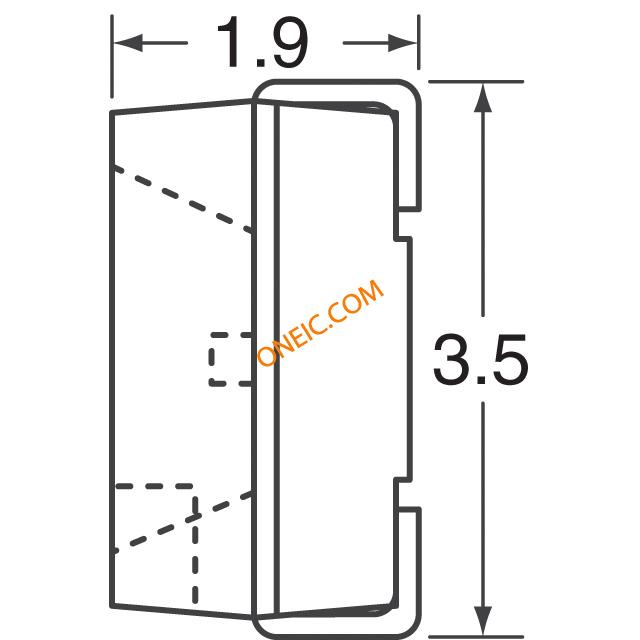

| Size / Dimension | 3.50mm L x 2.80mm W | Number of Positions | 2 |
| Shell Size - Insert | 1.8 | ||
Product Info
| Type | Uni-Color | Lens Type | Colorless Non Diffused |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | 100 | ||
