FY1105W-TR
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1031-1 | Standard Package | 2,000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Lamp Output | No | Luminous Flux | 180mcd |
| Viewing Angle | 50° | Current - Output | 20mA |
| Voltage - Supply | 1.9V | Wavelength - Peak | 592nm |
| LED Forward Voltage | 2.4 | Millicandela Rating | 180mcd |
| Current Rating (Max) | 20mA | Wavelength - Dominant | 590nm |
| Power Dissipation (Max) | 81 | Current - Peak Pulse (10/1000us) | 30 |
| MSCP (Mean Spherical Candle Power) | 180mcd | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical

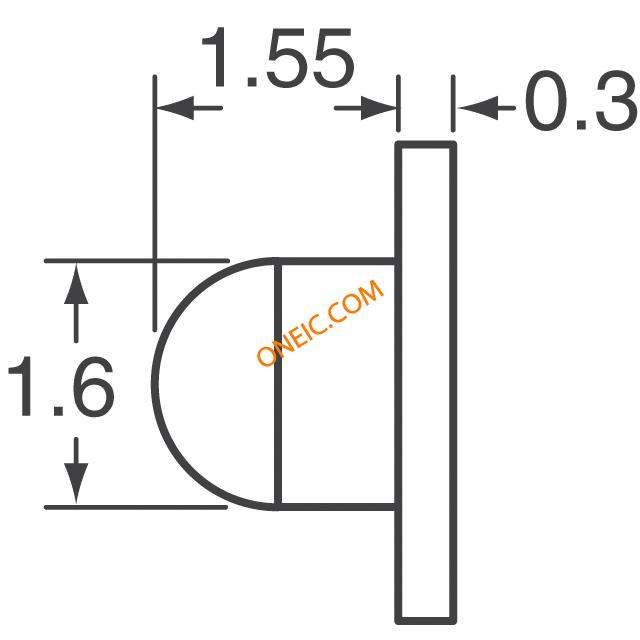

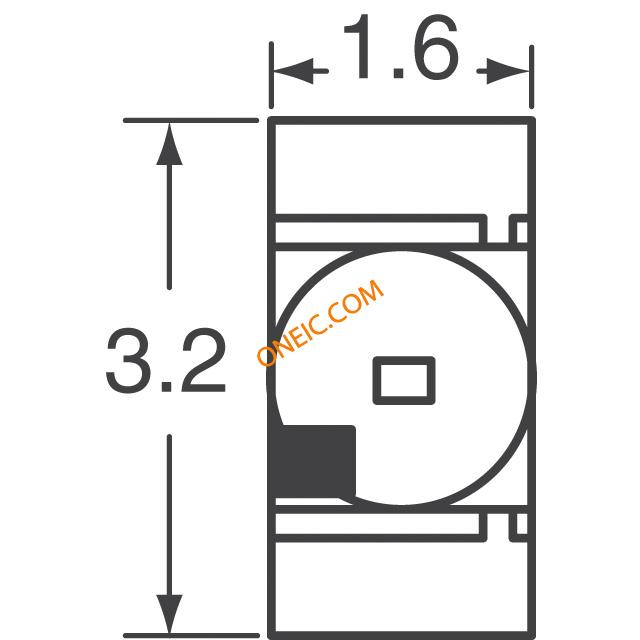

| Size | 3.20mm L x 1.60mm W | Color | Yellow |
| Height | 1.85mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Lens Style | Circular |
| Lens Diameter | 1.6x1.6x0.8 | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Package / Case | 1206 (3216 Metric) |
| Lens Style/Size | Round with Domed Top, 1.6mm | Material - Core | AlGaInP |
| Package Quantity | SMD | Size / Dimension | 3.20mm L x 1.60mm W |
| Number of Positions | 2 | ||
Product Info
| Type | Uni-Color | Series | 1105W |
| Lens Type | Colorless Non Diffused | Number of LEDs | 1 |
| Output Configuration | Surface Mount | ||
Environmental
| Operating Temperature | 100 | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 1105W Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
