FY1112C-TR
| Manufacturer | |
| Description | LED Uni-Color Yellow 592nm 2-Pin SMD T/R LED YELLOW 0603 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 404-1014-1 | Standard Package | 4,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Safety Category | Chip LED | ||
Electrical
| Wavelength | 592 | Lamp Output | No |
| Power - Max | 81 | Viewing Angle | 132°, 149° |
| Current - Output | 20mA | Duty Cycle (Max) | 30 |
| Voltage - Supply | 1.9V | Wavelength - Peak | 592nm |
| Millicandela Rating | 50mcd | Voltage - Input (Min) | 2.4 |
| Wavelength - Dominant | 590nm | Radiant Intensity (Ie) Min @ If | 50mcd |
Mechanical
| Color | Yellow | Width | 0.8 |
| Height | 0.50mm | Fan Type | Yellow |
| Material | AlGaInP | Packaging | Tape and Reel |
| Row Spacing | 5 | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Package / Case | SMD |

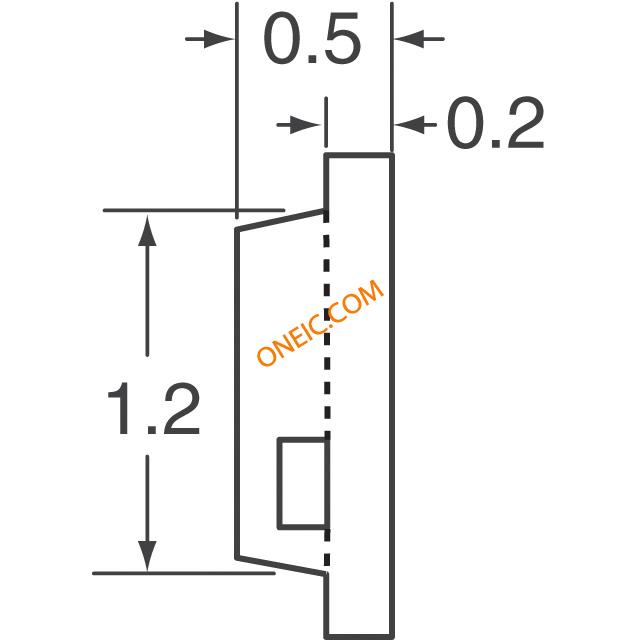

| Lens Style/Size | Rectangle with Flat Top, 1.2mm x 0.8mm | Length - Overall | 1.6 |
| Size / Dimension | 1.60mm L x 0.80mm W | Shell Size - Insert | 0.5 |
Product Info
| Typ | Uni-Color | Format | Rectangular |
| Lens Type | Diffused, White | Display Style | Colorless |
| Number of LEDs | 1 | Visual Field (Max) | 132/149 |
| Other Specifications | 2 | Printed Circuit Board | 2 |
| Equipment Part Numbers | SMD | ||
Environmental
| Operating Temperature | 85 | ||
