L6924D013TR
| Manufacturer | |
| Description | Battery Charger Li-Ion/Li-Pol 30mA 4.1V 16-Pin VFQFPN EP T/R PROG LI - ION B IC BATT CHRGR ION/POLY 16-VFQFPN Battery Management Battery Charger Sys Li-Ion/Li-Poly |
| Category |
商业参数
| 最小起订量 | 4000 | 单位包装 | 4000 |
| 其他名称 | 497-5100-2 | 产品类别 | Battery Management |
| 标准包装数量 | Cut Tape | 工厂包装数量 | 4000 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 4.1 V | 输出电流 | 30 mA |
| 供电电压 | 2.5 to 12 V | 最小供电电压 | 12 |
机械参数
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 封装形式 | 16VFQFPN EP | 包装数量 | VFQFPN EP |
| 位数 | 16 | 供应商器件封装 | 16-VFQFP-N (3x3) |
产品信息
| 类型 | Battery Charger | 系列 | L6924 |
| 功能 | Charge Management | 制造商全称 | STMicroelectronics |
| 电池化学类型 | Li-Ion|Li-Pol | ||
环境参数
| 工作温度 | -40 to 125 °C | ||
Documents & Media
相关型号
STEVAL-ISB005V1
stmicroelectronics
Low-Cost Li-Ion Battery Charger Demonstration Board Based On The ST7260 And L6924D Power Management IC Development Tools LI-ION BTRY CHARGER ST7260 AND L6924D BOARD EVAL CHARGER ST7260/L6924D ST7260, L6924D, LI ION BATTERY CHARGER, DEMO BOARD DEMO BOARD, L6924D LI-ION BATT CHARGER
EVAL6924U
stmicroelectronics
POWER SUPPLY Power Management IC Development Tools EVAL BOARD L6924UTR USB BATTERY CHARGER EVALUATION BOARD FOR L6924U: U BOARD EVAL FOR L6924UTR L6924U, BATTERY CHARGER, EVAL BOARD
EVAL6924D
stmicroelectronics
Evaluation Kit For Battery Charger System With Integrated Power Switch For Li Ion/LiPolymer Evaluation Board Power Management IC Development Tools EVAL BOARD FOR L6924D EVAL BOARD FOR L6924D

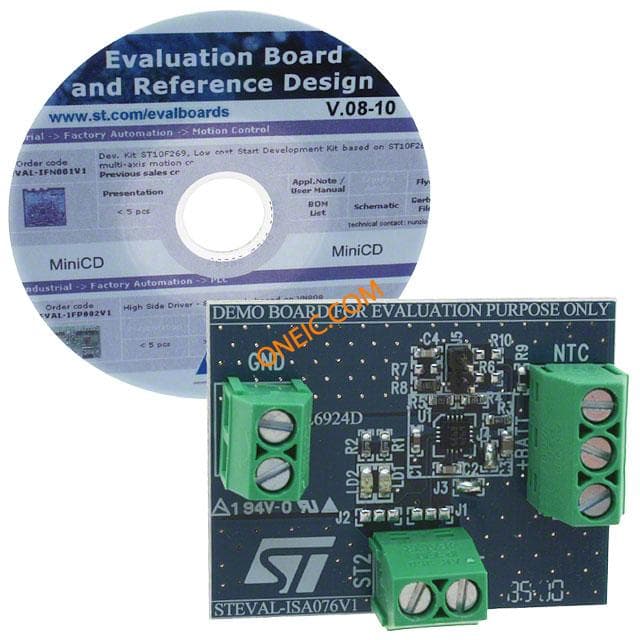

STEVAL-ISA076V1
stmicroelectronics
Battery Charger Demonstration Board With Integrated Power Switch Power Management IC Development Tools Battery Charger Eval 12V L6924D Demo BRD BOARD DEMO BATT CHRGR L6924D STEVAL-ISA076V1, Development Kit, Power Management, Demonstration Board L6924D, BATT CHARGER, LI ION / POLYMER, DEMO BOARD STMicroelectronics 演示板 电源管理 处理器和微控制器开发套件
