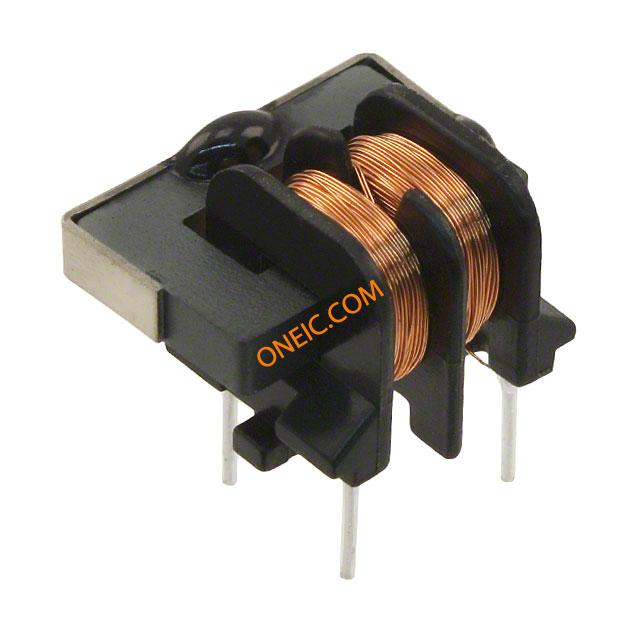

TLF9UBH203WK1
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | メーカ | Taiyo Yuden |
| Other Names | 587-2804 | Standard Package | 500 |
Compliance
| RoHS | RoHS 認証 | ||
Electrical
| Current | 180mA | Impedance | 150 kOhms |
| Tolerance | - 10 %, + 100 % | Inductance | 20 mH |
| Filter Type | Power or Data Line | Resistance - Input | 6.5 Ohms |
| DC Resistance (DCR) | 6.5 Ohm Max | Current Rating (Max) | 0.18 A |
| Resistance - Initial (Ri) (Min) | 6.5 Ohms | Current - Supply (Disable) (Max) | 0.18 A |
Mechanical
| Size | 15 mm W x 17 mm L x 12 mm H | Width | 15 mm |
| Packaging | Bulk | End - Size | Radial |
| Size - Body | 17 mm | Height (Max) | 12 mm |
| Mounting Type | Through Hole | Package / Case | Bulk |
| Size / Dimension | 0.669" L x 0.591" W (17.00mm x 15.00mm) | Termination Style | Radial |
Product Info
| Type | Leaded Common Mode Filters for DC and Signal Lines | Series | TLF |
| Product Type | Common Mode Filters | Number of Lines | 2 |
Environmental
| Operating Temperature | -25°C ~ 105°C | Operating Temperature - Junction | - 25 C to + 105 C |
