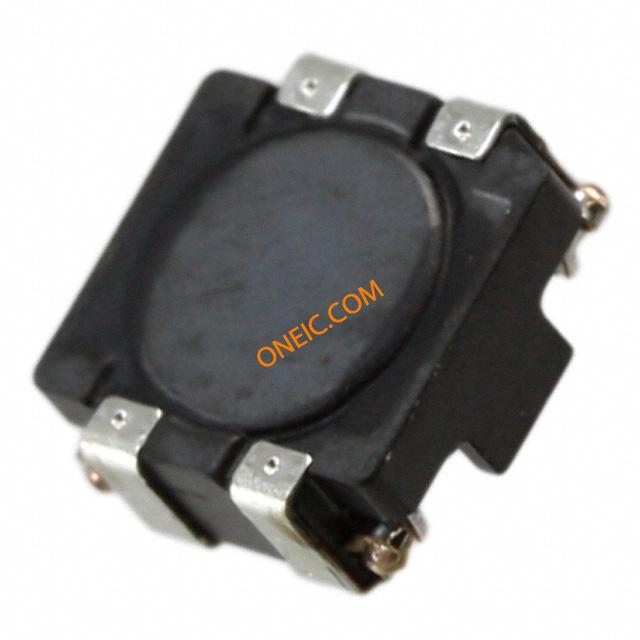

ACM4520-142-2P-T000
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | Lead Time | 70 Days |
| メーカ | TDK | Other Names | 445-6136-1 |
| Subcategory | Common Mode Chokes | Standard Pack | 800 |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | RoHS 認証 | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 1.5A | Impedance | 1.4 kOhms |
| Inductance | LX2 µH | Filter Type | Power Line |
| Test Frequency | 100 MHz | Voltage Rating | 50 V |
| Current - Output | 1500 mA | Resistance - Input | 80 uOhms |
| DC Resistance (DCR) | 80 mOhm Max | Current Rating (Max) | 1.5 A |
| Insulation Resistance | 10M | Voltage - Input (Min) | 50 Vdc |
| Resistance - Initial (Ri) (Min) | 80 uOhms | Current - Supply (Disable) (Max) | 1.5 A |
Mechanical
| Size | 4.7 mm W x 4.5 mm L x 2 mm H | Depth | 4.7 |
| Width | 4.7 mm | Height | 2 mm |
| Length | 4.5 mm | Weight | 0.138 g |
| Packaging | Tape and Reel | End - Size | SMD/SMT |
| Size - Body | 4.5 mm | Termination | Flat Style |
| Height (Max) | 2 mm | Mounting Type | Surface Mount |
| Package / Case | 4520 | Length - Overall | 4.9 |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) | Termination Style | SMD/SMT |
| Supplier Device Package | OPEN | ||
Product Info
| Type | Power Line | Design | HORIZONTAL |
| Series | ACM | Technology | WIREWOUND |
| Product Type | Common Mode Filters | Configuration | Dual |
| Number of Lines | 2 | RF Family/Standard | ACM |
Environmental
| Mechanical Life | Mouser 初 | Temperature - Test | -40 °C |
| Operating Temperature | -40 °C | Operating Temperature - Junction | - 40 C to + 85 C |
Documents & Media
PDF Document
PDF Document
PDF Document
