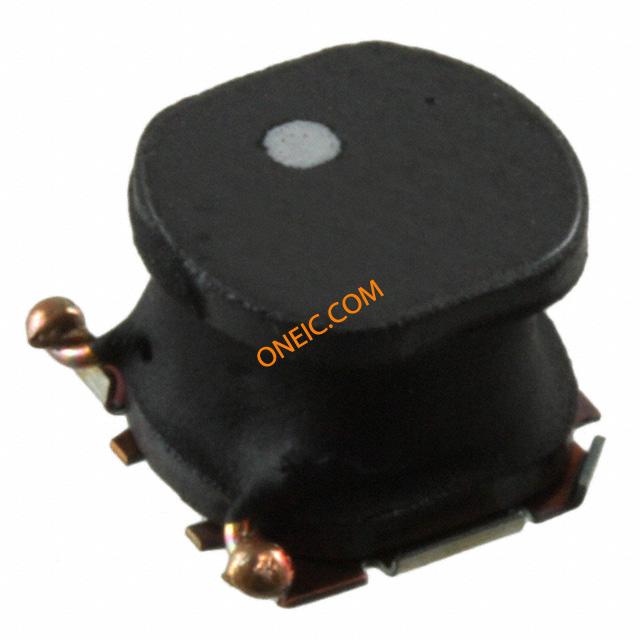

VLP6045LT-4R7M
| Manufacturer | |
| Description | Fixed Inductors 4.7uH 0.029ohms 4.4A INDUCTOR POWER 4.7UH 4.1A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Inductors | Other Names | 445-8760-1 |
| Standard Pack | 1,000 | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 20 % | Inductance | 4.7 uH |
| Test Frequency | 100 kHz | DC Resistance (DCR) | 38 mOhm Max |
| Current Rating (Max) | 4.4 A | Current Saturation - Series | 4.4A |
| Resistance - Initial (Ri) (Min) | 0.038 Ohms | ||
Mechanical
| Width | 6 mm | Packaging | Reel |
| Shielding | Shielded | Mounting Type | Surface Mount |
| Package / Case | 4.5 mm | Material - Core | Ferrite |
| Size / Dimension | 6 mm W x 6 mm L x 4.5 mm H | Termination Style | SMD/SMT |
| Height - Seated (Max) | 0.177" (4.50mm) | ||
Product Info
| Type | Wirewound | Series | VLP |
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | - 40 C to + 105 C |
