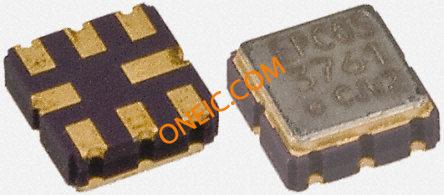

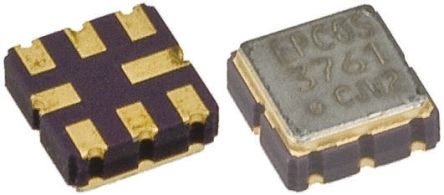

B39431B3760Z810
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SAW Filters | Other Names | 495-1672-1 |
| Product Category | Signal Conditioning | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Frequency | 433.92MHz Center | Impedance | 50 Ohm |
| Filter Type | Band Pass | Power (Watts) | 2.6dB |
| Insertion Loss | 1.9dB | Voltage Rating | 6 V |
| Frequency Range | 433.76 MHz to 434.08 MHz | Frequency - Center | 433.92 MHz |
| Connector Impedance | 50Ohm | Insertion Loss (Max) | 2.6 dB |
Mechanical
| Size | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Depth | 3.8mm |
| Height | 1.5mm | Length | 3.8mm |
| Bandwidth | 360kHz | Packaging | Tape & Reel (TR) |
| Height (Max) | 0.059" (1.50mm) | Mounting Type | Surface Mount |
| -3db Bandwidth | 0.74 MHz | Package / Case | 8-SMD, No Lead |
| Package Cooled | QCC8B | Length - Overall | 3.8 |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Termination Style | SMD/SMT |
| Number of Contacts | 8 | Number of Positions | 8 |
Product Info
| Type | Low Loss RF Filter for Remote Control Receivers | Series | B3760 |
| Function | Y | Applications | Remote Control |
Environmental
| Operating Temperature | +125°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- B3760.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
