点击放大查看

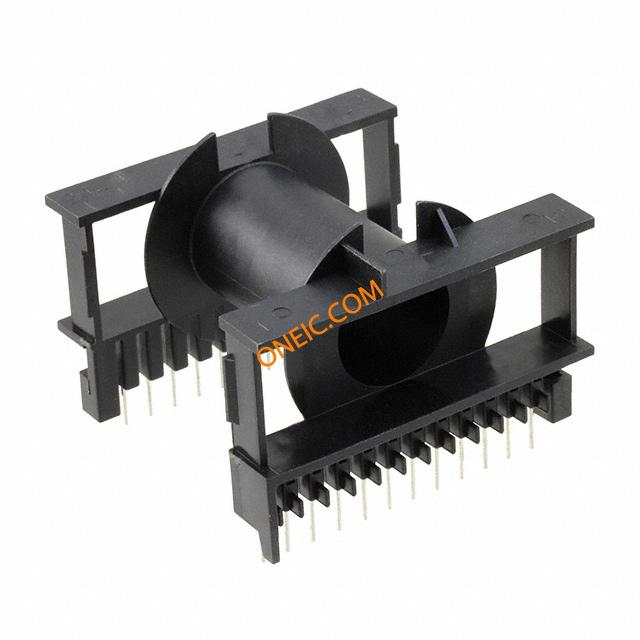

B66398W1024T1
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Hardware & Accessories | Part # Aliases | B66398W1024T001 |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049018 | Material Flammability Rating | :UL94V-0 |
Electrical
| Core Size | ETD 59 x 31 x 22 | Tolerance | 0.25 |
| Resistance - Initial (Ri) (Min) | 10 uOhms | ||
Mechanical
| Depth | 49.2mm | Width | 66.2mm |
| Length | 66.9mm | Weight | 0.01 |
| Material | GFR Polyterephthalate | Packaging | Bulk |
| Number of Pins | 24 | Width - Overall | 66.2 mm |
| Length - Overall | 66.9 mm | Size / Dimension | 66.9 x 66.2 x 49.2mm |
| Diameter - Outside, Non-Expanded | 49.2 mm | ||
Product Info
| Series | :ETD59 | Product Type | Coil Former |
| Accessory Type | ETD 59/31/22 Coil Former | For Use With/Related Products | B66397 |
Environmental
| Maximum Temperature Limit | +180°C | ||
Documents & Media
PDF Document
