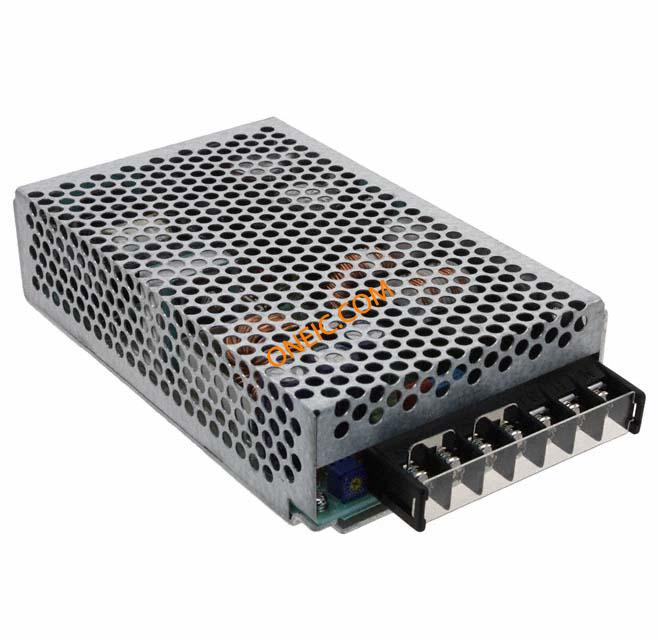

HK100A-15/A
| Manufacturer | |
| Description | Linear and Switching Power Supplies 15V 7A AC/DC Power Supply Single-OUT 15V 7A 7-Pin PWR SUP IND LOW PRO 15V 7.0A Switching Power Supplies 15V 7A PowerSupply;85to132VAC/110to175VDC;15V;7A(Load);47to440Hz |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Part # Aliases | HK100A15/A |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | Rad Hardened | No |
| Approval Agency | CSA, cUL, UL | ||
Electrical
| Output | 15VDC@7A | Frequency | 47 to 440 Hz |
| Efficiency | 81% | Power (Watts) | 100W |
| Power - Output | 100W | Voltage Rating | 85 VAC to 132 VAC |
| Current - Output | 15 VDC @ 7A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 105W |
| Voltage - Isolation | 2000VAC | Voltage - Input (Min) | 15V |
| Current - Output / Channel | 7 A | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 150 mm | Width | 2.5 in |
| Height | 1.06 in | Length | 3.5 in |
| Weight | 9.876709 oz | Mounting Type | Screw |
| Mounting Style | Chassis | Length - Overall | 93 mm |
| Primary Material | AC-DC | Size / Dimension | 5.91" L x 1.52" W x 3.66" H (150.1mm x 38.6mm x 93.0mm) |
| Number of Positions | 7 | Shell Size - Insert | 34.5 |
Product Info
| Type | Standard Product | Style | Enclosed |
| Features | RemoteSense | Applications | Commercial |
| Manufacturer | HK-ASeries | Configuration | Enclosed |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | 0°C ~ 50°C | Operating Temperature - Junction | 50C |
