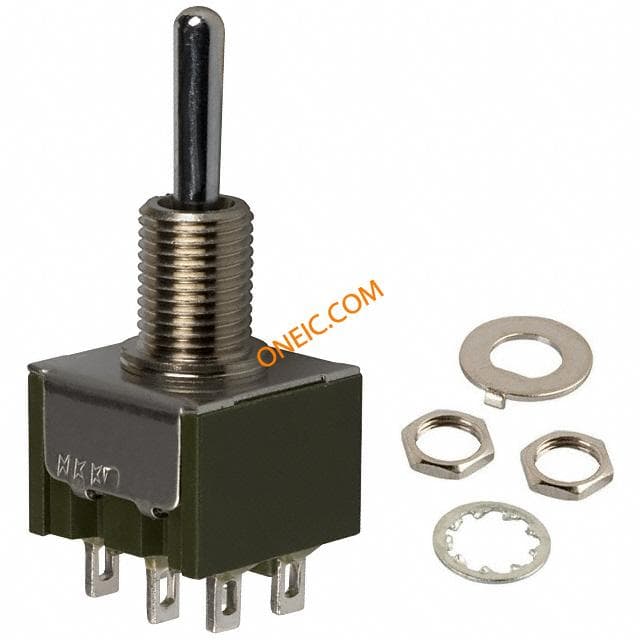

A203SYZQ04
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 1-1825139-0 | Product Category | Toggle Switches |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | Part Status | 1-1825139-0 |
Electrical
| Circuit | DPDT | Operation | OnOffOn |
| Voltage Rating | 120V | Number of Poles | 2 |
| Switch Function | On-Off-On | Contact Resistance | 10mΩ |
| Current Rating (Max) | 5A (AC/DC) | Switch Function/Rating | (On)-Off-(On) |
| Contact Rating (Current) | 5 A | ||
Mechanical
| Packaging | Bulk | Termination | SolderLugs |
| Contact Form | DPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount | Terminal Type | Wire Lug |
| Bushing Thread | 1/4-40 | Connector Type | 线焊片 |
| Contact Finish | Silver | Mounting Style | Panel |
| Actuator Length | 10.41mm | Contact Material | Silver Plated Copper |
| Actuator Material | Phenolic | Termination Style | Solder Lug |
| Panel Cutout Shape | 6.35mm | Number of Positions | 3 |
| Bushing, Grommet Type | 1/4-40 | Contact Layout, Typical | DPDT |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | ||
Product Info
| Type | Toggle | Features | Epoxy Sealed Terminals |
| Function | Y | Illumination | Non-Illuminated |
| Electrical Life | 30,000 Cycles | ||
Environmental
| Seal Rating | Sealed | Operating Temperature | -20°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 1491719.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
