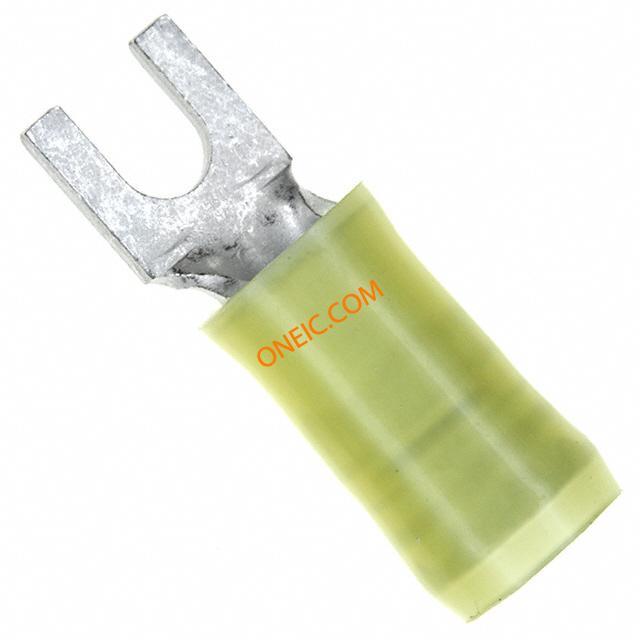

| Description | Spade Tongue Terminal 10-12AWG 24.23mm 7.37mm Tin Loose Piece Terminals TERMINAL PIDG SPD 12 Ring and Spade Tongue Terminals CONN SPADE 10-12 AWG #6 YEL PIDG Spade Tongue Terminal 10-12AWG 24.23mm 7.37mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B AMP;TERMINAL;SPADETONGUE;12-10AWG;YELLOW;STUDSIZE6 TE Connectivity PIDG 系列 黄色 绝缘 压接铲形连接器 , M3.5 (#6) 螺栓 TERMINAL,PIDG SPD 12-10 6 |
| Category |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | SPADE-020 |
| 宽度 | 7.37mm | 表面处理 | Tin |
| 重量 | 3.48 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.07mm |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 6 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 触点形状 | Spade Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Standard |
| 行程角度 | Straight | 电缆直径 | 6.6mm² |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 端子样式 | Straight | 连接器样式 | Straight |
| 总宽度 | 0.29" | 触头材料 | Copper |
| 绝缘颜色 | 黄色 | 总长度 | 0.954" (24.23mm) |
| 包装数量 | Loose Piece | 主要材料 | Fork |
| 绝缘高度 | Insulation Support | 端接样式 | 叉形舌片 |
| 连接器颜色 | Yellow | 绝缘直径 | 3.81-5.84 [.150-.230] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.290" (7.37mm) |
| 端接长度 | 0.591" (15.01mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 1.02 [0.040] | 螺纹/螺钉/孔尺寸 | M3.5 (#6) |
| 供应商器件封装 | PIDG | 支撑面板厚度 | Insulation Support |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 外径-未扩张 | 5.84 mm [ .2299 in ] | 环中心到端接长度 | 0.218" (5.54mm) |
产品信息
| 类型 | Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | 322 | 覆盖范围 | 无覆盖 |
| 产品特性 | Serrated Termination | 可密封 | 否 |
| 检查插槽 | 否 | 制造商全称 | AMP |
环境参数
| 工作温度 | 105 | ||
