Business
| Product | Ring Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
Mechanical
| Color | Yellow | Depth | 12.7 mm |
| Shape | RING-041 | Finish | Tin |
| Length | 30.18 mm | Weight | 0.002 |
| Material | Copper | Packaging | Bulk |
| Thickness | 0.040" (1.02mm) | Cable Type | Regular Wire |
| Heavy Duty | No | Insulation | Insulated |
| Wire Gauge | 10-12 AWG | Termination | Crimp |
| Body Material | Copper | Contact Shape | Ring Tongue |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 6 mm |
| Terminal Type | Circular | Connector Type | :Ring Tongue |
| Contact Finish | Tin | Plating - Body | Tin |
| Connector Style | Straight | Contact Material | Copper |
| Insulation Color | :Yellow | Length - Overall | 30.18 [1.188] |
| Package Quantity | Loose Piece | Insulation Height | Insulation Support |
| Color - Connectors | Yellow | Contact Tail Length | 1.02 [0.040] |
| Insulation Diameter | 3.81-5.84 [.150-.230] | Insulation Material | Nylon |
| Width - Outer Edges | 0.500" (12.70mm) | Material - Insulation | Polyamide (PA), Nylon |
| Supplier Device Package | PIDG | Wire Gauge or Range - AWG | 5,180 â 13,100 |
| Wire Gauge or Range - mm2 | 3.00-6.00² [12-10] | ||
Product Info
| Type | PIDG Ring Tongue Terminal | Gender | Female |
| Series | 273 | Features | Serrated Termination |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
Documents & Media
Online Document
Similar Parts
679300-1
te connectivity / amp
$40694.3280
Details
35110
TE Connectivity AMP Connectors
$2.3106
Details
59287-2
te connectivity / amp
$24387.1025
Details
59828-1
te connectivity / amp
$24299.2791
Details
8-35110-1
te connectivity / amp
$4.2500
Details
59239-4
te connectivity / amp
$10459.2854
Details
320569
TE Connectivity AMP Connectors
$2.2902
Details
59824-1
te connectivity / amp
$2280.7608
Details
58423-1
te connectivity / amp
$670.7520
Details
91965-2
te connectivity / amp
$28795.4840
Details
58433-3
te connectivity / amp
$1190.3196
Details
47808-6
te connectivity / amp
$14710.1000
Details
679305-1
te connectivity / amp
$28512.4000
Details

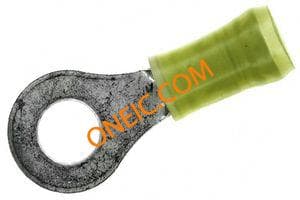

403665755
