1-104433-0
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 20POS DUAL 15AU Headers & Wire Housings 20 MODII HDR DRST B/A W/HD 20 MODII HDR DRST B/A W/HD 20 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors, |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 200 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Approved Countries | CSA LR7189, UL E28476 |
| Protection Features | Without | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Rated AC | 30 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| 2nd Connector | Without | Contact Shape | Square |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded, Breakaway |
| Contact Finish | Gold Over Nickel | Mounting Style | 标准 |
| Number of Rows | 2 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | 固定焊尾 | Package Quantity | 200 |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 20 | Termination Finish | Matte Tin-Lead |
| Number of Positions | 20 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 0.318" (8.08mm) |
| Termination Post Length | 3.18 mm | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Note | 参考客户图纸以确定板保持尾部的数量和位置。其他尾部长度也可用，请咨询 AMP Incorporated。 | Type | Unshrouded Header |
| Gender | HDR | Series | AMPMODU MOD II |
| Key Type | 否 | Product Type | Headers |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
87133-6
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS DUAL .100 BLK Headers & Wire Housings 20 LOCKING CLIP HSG Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 LOCKING CLIP HSG DR MRKD

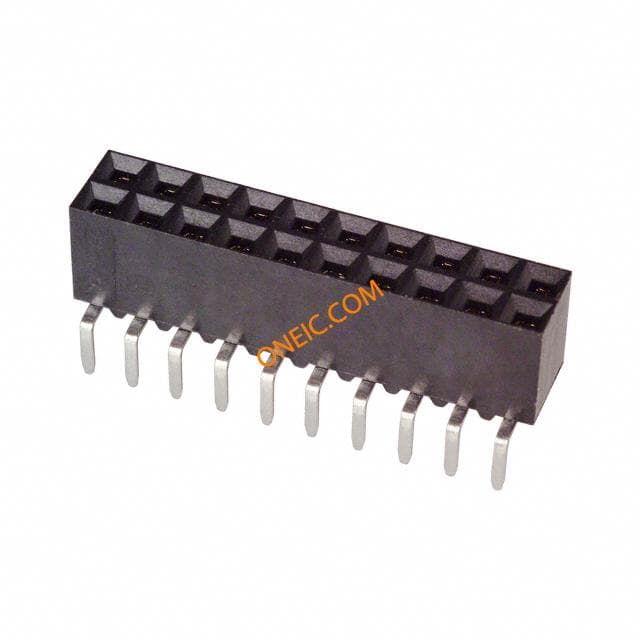

5-534267-2
