点击放大查看
1-1337446-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage | :500V | Frequency | 0 to 2 GHz |
| Impedance | 75 Ohm | Voltage Rating | 500V |
| Frequency - Max | 2GHz | Voltage - Working | :500V |
| Contact Resistance | :1.5mohm | Voltage - Breakdown | :1500V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.0012 | Material | :Brass |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Silver | Orientation | straight |
| Termination | Solder Cup | Body Material | Brass |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Silver |
| Fastening Type | Bayonet Lock | Mounting Style | PanelMount |
| Plating - Body | :Silver | Connector Style | BNC |
| Contact Material | Brass | Package Quantity | 1 |
| Primary Material | BNC | Connector - Cable | socket |
| Termination Style | Solder | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Material - Insulation | teflon | Center Contact Plating | Silver |
| Center Contact Material | Brass | Supplier Device Package | :Straight Flanged Jack |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 1 | Type | BNC |
| Gender | RCP | Features | Extended Insulation |
| Connection Type | Wire | Number of Units | 1 |
| RF Family/Standard | 1337446 | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
PDF Document
Online Document
Similar Parts
1-1337503-0
te connectivity / amp
$24.6432
Details
1-1337427-0
te connectivity / amp
$9.0600
Details

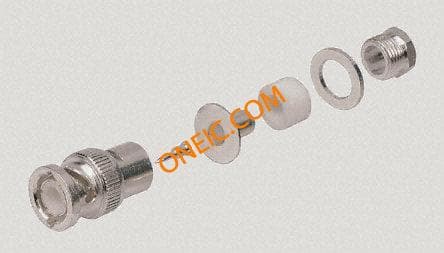

1-1478154-0
te connectivity / amp
$15.2320
Details
1-1337451-0
te connectivity / amp
$25.7720
Details
1-1337457-0
te connectivity / amp
$15.7080
Details
1-1478075-0
te connectivity / amp
$78.7705
Details

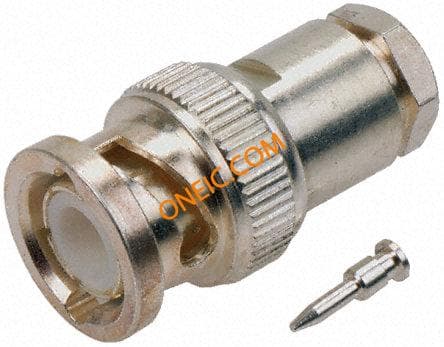

1-1478400-0
