1-1586019-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Current Rating (Max) | 9/Contact A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 20 mm |
| Pitch | 4.2 mm | Width | 20 mm [ .787 in ] |
| Height | 11.8 mm [ .464 in ] | Length | 22.2 mm [ .874 in ] |
| Sealed | Not Sealed | Material | Nylon |
| Packaging | Bulk | Body Color | 白色 |
| Cable Type | 分离式导线 | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | Receptacle | Insertion Force | 15 |
| Housing Material | Nylon | Length - Overall | 22.6 mm |
| Package Quantity | 500 | Primary Material | InterconnectSystem |
| Termination Style | 插座 | Number of Contacts | 10 |
| Contact Termination | Crimp | Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] |
| Number of Positions | 10 | Contact Layout, Typical | 矩阵 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Manufacturer | VAL-U-LOK |
| Product Type | Housing | Number of Circuits | 10 |
| Selectively Loaded | No | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
Documents & Media
Online Document
Similar Parts
1586315-4
te connectivity / amp
$3.6025
Details
794958-1
te connectivity / amp
$0.1006
Details
1-1586018-0
te connectivity / amp
$0.8378
Details
794956-3
te connectivity / amp
$0.1333
Details
1-1586000-0
te connectivity / amp
$0.7480
Details
794958-3
te connectivity / amp
$0.1904
Details
794956-1
te connectivity / amp
$0.1047
Details
1586315-1
te connectivity / amp
$0.1924
Details
794956-2
te connectivity / amp
$2.3346
Details
1586055-1
te connectivity / amp
$0.2244
Details
1586317-2
te connectivity / amp
$2.3249
Details
1-794953-0
te connectivity / amp
$0.1566
Details

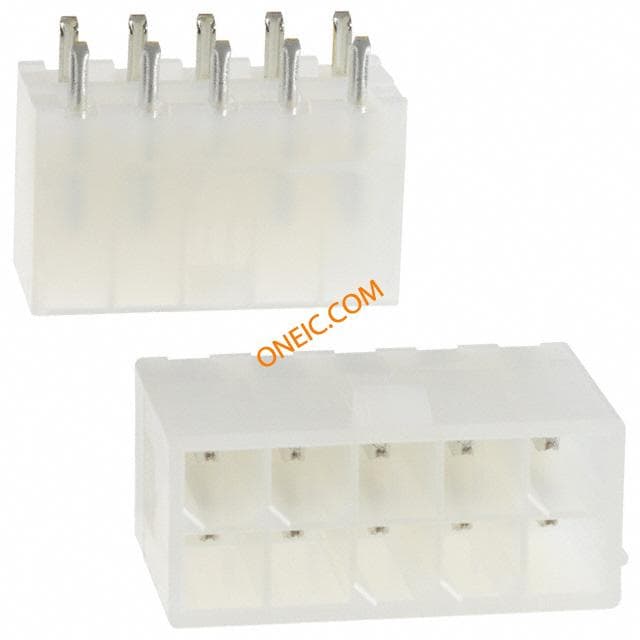

1-1586037-0
te connectivity / amp
$3.7204
Details
1586315-2
te connectivity / amp
$1.5980
Details
1586315-3
te connectivity / amp
$3.6750
Details

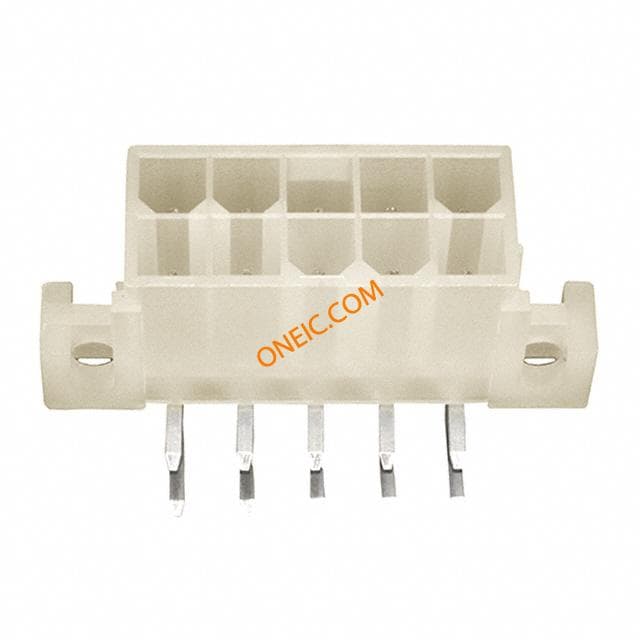

1-1586043-0
