Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | Always was RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Working | :250V | Contact Resistance | :4mohm |
| Dielectric Strength | :1500V | Current Rating (Max) | 13 A |
| Insulation Resistance | :500Mohm | Connector - Voltage Input | Commercial MATE-N-LOK |
Mechanical
| Color | Natural | Depth | 21.59mm |
| Pitch | 4.95 mm | Width | 18.42mm |
| Weight | 0.004 | Material | :Nylon |
| Lock Type | Positive Lock | Packaging | Bulk |
| Wire Gauge | 14-30 AWG | Row Spacing | 0.360" (9.14mm) |
| Contact Type | Female Socket | Pitch - Post | 4.95 x 9.14 [.195 x .360] |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Package / Case | Plug |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Termination Style | Wire | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Clear | Number of Contacts | 8 |
| Contact Termination | Crimp | Number of Positions | 8 |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 2.13 [0.084] |
| Wire Gauge or Range - AWG | 30-14 | ||
Product Info
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | Number of Circuits | 8 |
| For Use With/Related Products | 5.08 mm Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
Online Document
Similar Parts
61117-2
te connectivity / amp
$0.6298
Details
350212-2
te connectivity / amp
$14.3480
Details
61314-5
te connectivity / amp
$6.3240
Details
61173-4
te connectivity / amp
$1.0948
Details

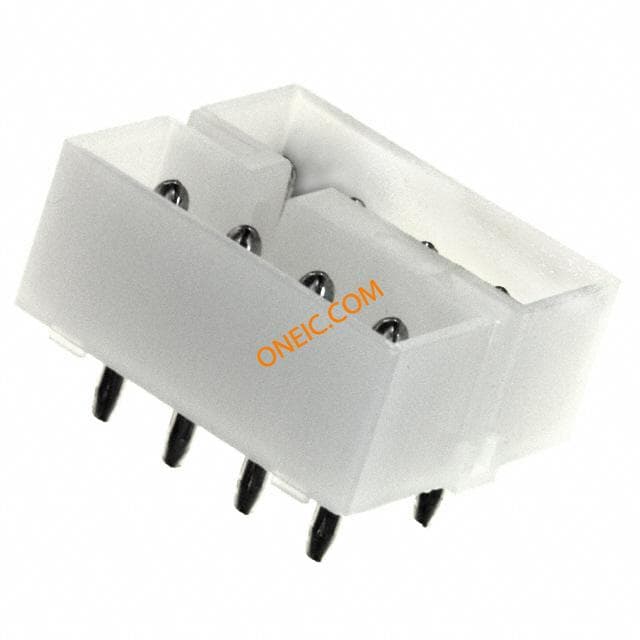

350426-1
te connectivity / amp
$6.5280
Details
61117-5
te connectivity / amp
$7.0040
Details

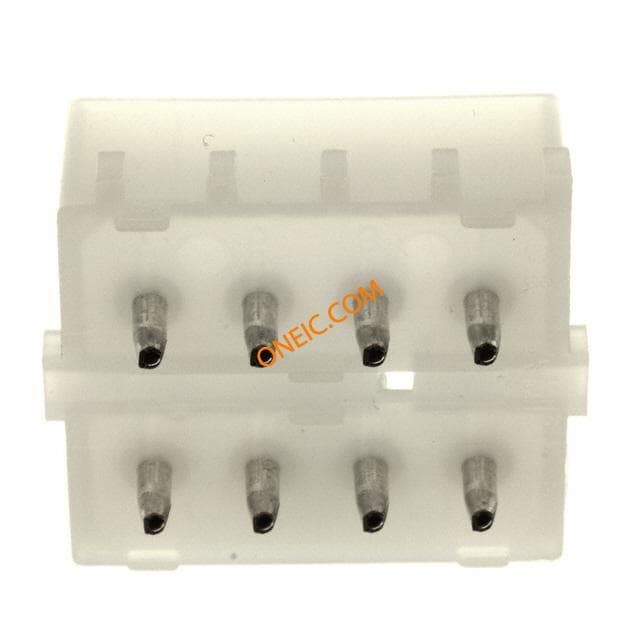

350212-1
