Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 13 A | Voltage - Supply (Min) | 250VDC/250VAC |
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | Natural | Depth | 21.59mm |
| Pitch | 4.95 mm | Width | 18.41mm |
| Height | 18.41 mm | Weight | 0.005 |
| Lock Type | Positive Lock | Packaging | Bulk |
| Wire Gauge | 14-30 AWG | Row Spacing | 0.360" (9.14mm) |
| Contact Type | Female Socket | Body Material | :Nylon |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Plug | Cord Termination | :Panel Mount |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Termination Style | Wire | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | Center Contact Material | 4.95 x 9.14 [.195 x .360] |
| Contact Layout, Typical | Double-Row | Contact Finish Thickness | 2.13 [0.084] |
| Wire Gauge or Range - AWG | 30-14 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | Number of Circuits | 12 |
| For Use With/Related Products | 5.08 mm Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Online Document
Similar Parts
350213-2
te connectivity / amp
$21.5349
Details
61117-2
te connectivity / amp
$0.6298
Details
61314-5
te connectivity / amp
$6.3240
Details
61173-4
te connectivity / amp
$1.0948
Details
61314-1
te connectivity / amp
$0.3604
Details

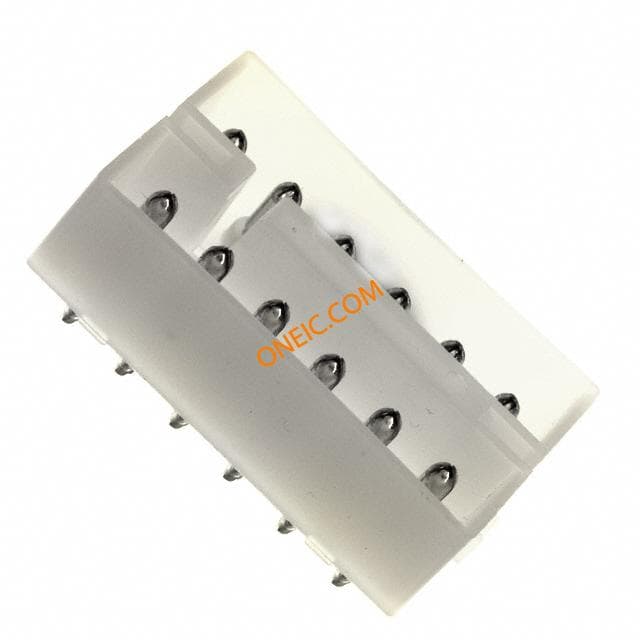

350220-1
te connectivity / amp
$11.4467
Details
1586524-2
te connectivity / amp
Details
61314-7
te connectivity / amp
$4.4711
Details

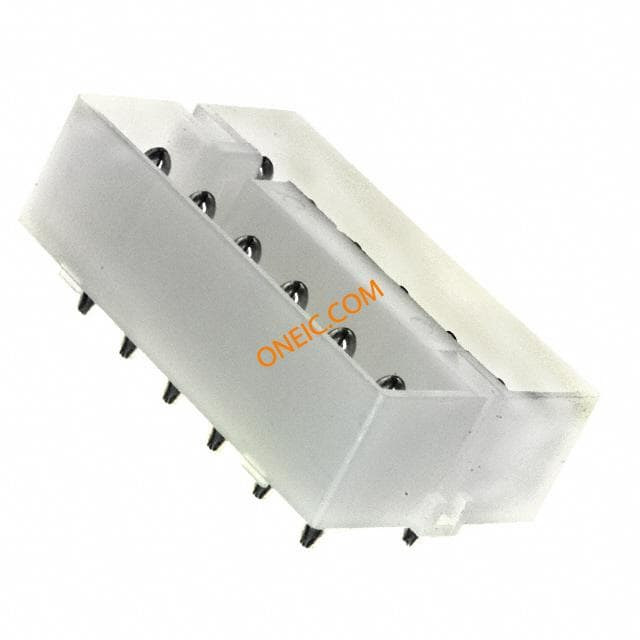

350213-1
