1-480702-9
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Color | Black | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 10-30 AWG |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Package / Case | Plug |
| Panel Thickness | .03 – .09 | Housing Material | Polyamide (PA) |
| Package Quantity | 1 | Termination Style | Wire |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 母端或公端 | Contact Layout, Typical | 直插式 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 125 °C [ -67 – 257 °F ] |
Documents & Media
Online Document
Similar Parts
350761-3
te connectivity / amp
$8.7040
Details
350792-2
te connectivity / amp
$8.7720
Details
2-480703-0
te connectivity / amp
$1.7734
Details
350988-4
te connectivity / amp
$4.3520
Details
1-480703-2
te connectivity / amp
$1.8469
Details
3-643230-0
te connectivity / amp
$26.3636
Details

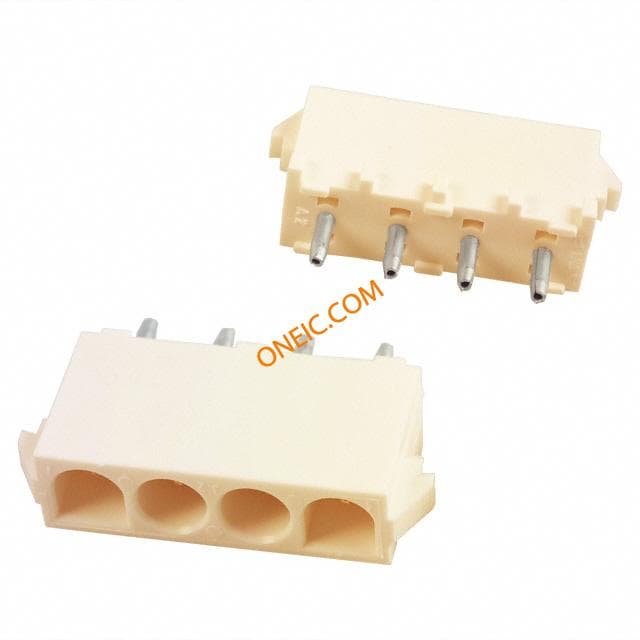

350761-4
