点击放大查看
1-794617-4
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 14.04mm |
| Pitch | 3 mm | Width | 11.7mm |
| Height | 11.7 mm | Length | 22mm |
| Weight | 0.00227 | Packaging | Bulk |
| Wire Gauge | 20 AWG | Row Spacing | 0.118" (3.00mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Package / Case | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
PDF Document
Online Document
Similar Parts
4-794627-4
te connectivity / amp
$14.9600
Details
4-794636-4
te connectivity / amp
$16.9599
Details
1-794629-4
te connectivity / amp
$14.6200
Details
1-794679-4
te connectivity / amp
$11.3560
Details
1-794632-4
te connectivity / amp
$8.9619
Details
1-794618-4
te connectivity / amp
$6.8680
Details
1-794638-4
te connectivity / amp
$12.3760
Details
1-794615-4
te connectivity / amp
$3.4000
Details
4-794630-4
te connectivity / amp
$7.0720
Details
4-794629-4
te connectivity / amp
$43.8056
Details
1-794633-4
te connectivity / amp
$8.7040
Details
1-794623-4
te connectivity / amp
$12.7160
Details
1-794628-4
te connectivity / amp
$11.5600
Details
1-794627-4
te connectivity / amp
$9.7240
Details
1-794636-4
te connectivity / amp
$8.9080
Details
1-794619-4
te connectivity / amp
$9.7259
Details
4-794626-4
te connectivity / amp
$19.9920
Details
4-794680-4
te connectivity / amp
$11.1644
Details
1-794678-4
TE Connectivity / AMP
$7.6160
Details

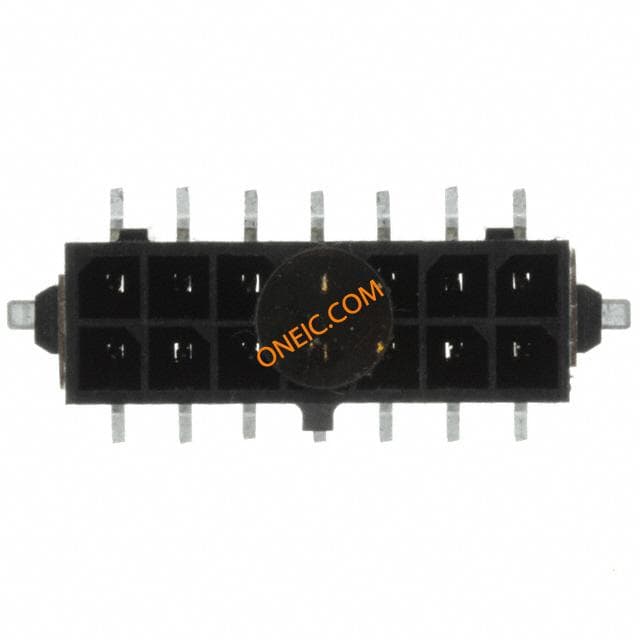

4-794638-4
