Business
| Other Names | A30584 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 9 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Natural | Depth | 23.9 mm |
| Pitch | 4.2 mm | Weight | 0 |
| Material | Nylon | Packaging | Bulk |
| Row Spacing | 0.165" (4.20mm) | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 2 |
| Housing Material | Nylon | Primary Material | InterconnectSystem |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 14 | Contact Termination | Crimp |
| Number of Positions | 14 | 1st Connector Mounting Type | :Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | PE |
| Manufacturer | VAL-U-LOK | Product Type | Housing |
| Number of Circuits | 14 | For Use With/Related Products | :VAL-U-LOK Series Connector System |
Documents & Media
PDF Document
Similar Parts
1586314-3
te connectivity / amp
$0.3876
Details

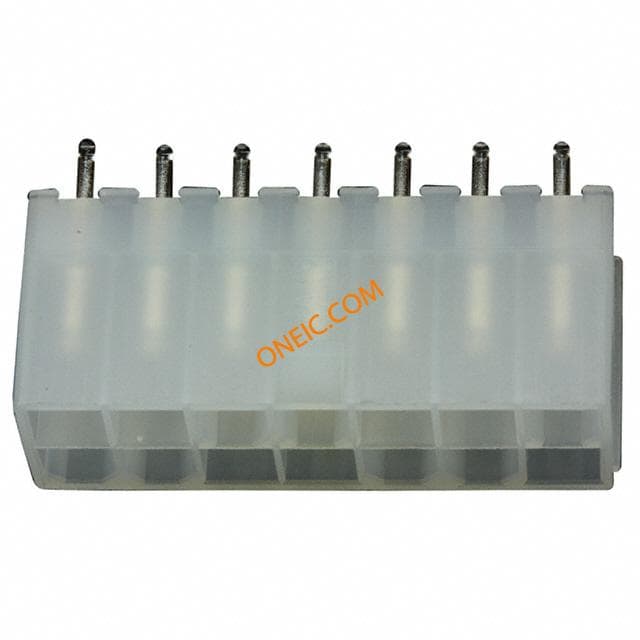

1-1586037-4
te connectivity / amp
$7.7642
Details
1586314-1
te connectivity / amp
$0.1979
Details
794955-2
te connectivity / amp
$0.9493
Details
794957-2
te connectivity / amp
$2.0305
Details
794955-1
te connectivity / amp
$0.1469
Details
794957-1
te connectivity / amp
$0.1646
Details
1586054-1
te connectivity / amp
$0.1809
Details
1-794954-4
te connectivity / amp
$1.1084
Details
794957-3
te connectivity / amp
$0.2115
Details
1586316-1
te connectivity / amp
$0.1836
Details
1586316-2
te connectivity / amp
$0.7072
Details
1586314-2
te connectivity / amp
$1.5572
Details
1586314-4
te connectivity / amp
$1.0860
Details
1586316-3
te connectivity / amp
$0.2312
Details

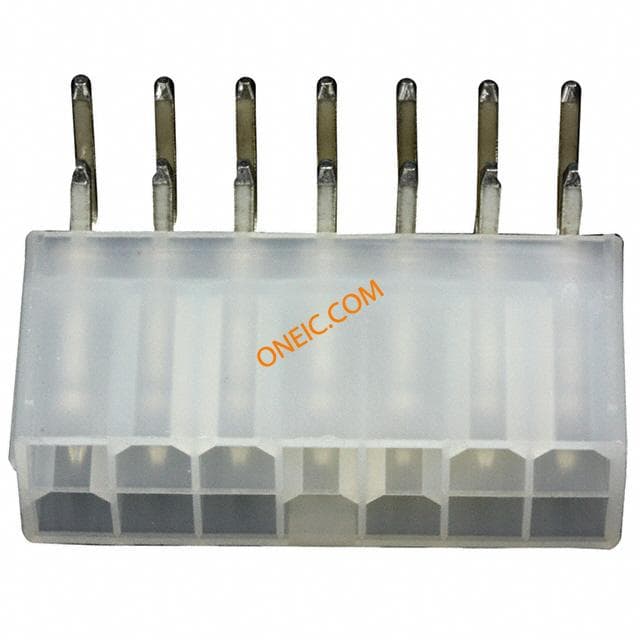

1-1586041-4
