点击放大查看

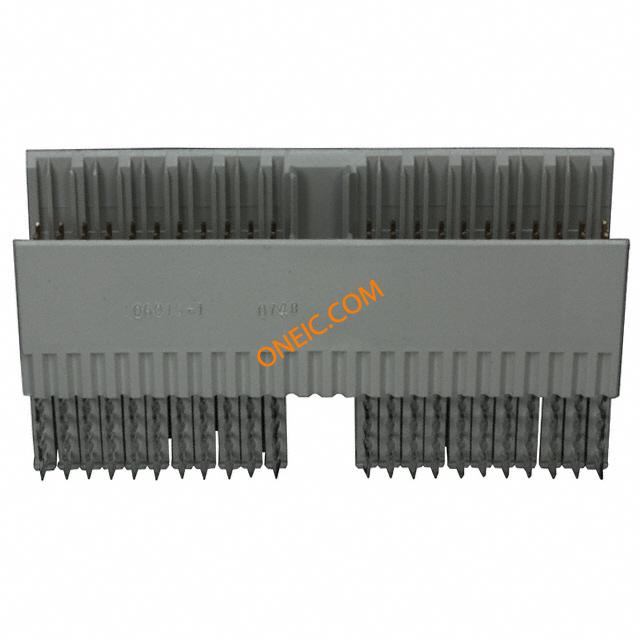

106015-1
| Manufacturer | |
| Description | Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 110 POS 2MM PCB Conn Hard Metric PL 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 110POS CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85411000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
机械参数
| 间距 | 2 mm | 重量 | 1 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 柱间距 | :2mm | 极化 | Guide Lugs, Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type A | 接触镀层 | Gold Over Nickel |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 50.00 [1.968] | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin-Lead over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 110 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Warning: Card extender male connectors should not be used with cable connectors | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | :Z-PACK |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | No | 加载位置数 | All |
