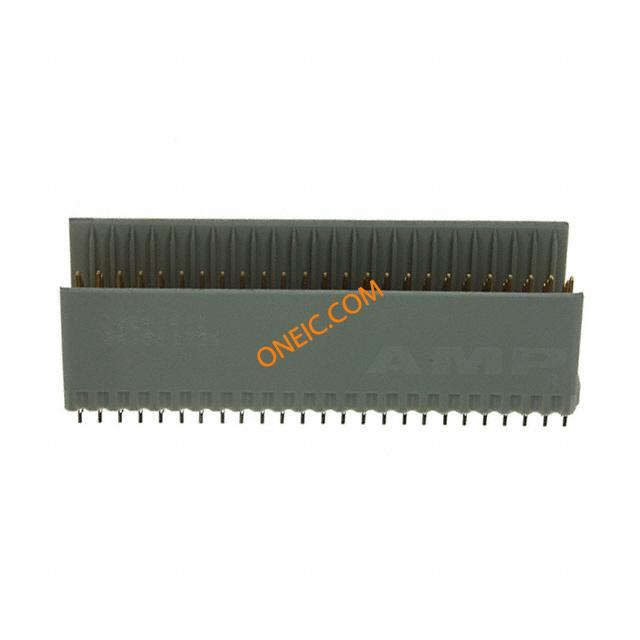

106414-1
| Manufacturer | |
| Description | ハードメトリックコネクタ A M-HDR 125P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 125POS TYPE B VERT Hard Metric Connectors A M-HDR 125P Z-PACK/A M-HDR 125P Z-PACK/A M-HDR 125P Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 10 | Product Category | Hard Metric Connectors |
| Standard Package | 990 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | ||
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Shield Type | No | Termination | Press-Fit |
| Contact Type | Short Tail | Housing Color | Gray |
| Mounting Type | Vertical | Connector Type | Type B, 25 Column |
| Contact Finish | Gold (30) over Nickel | Number of Rows | 5 |
| Connector Style | B 25 | Connector Usage | Backplane |
| Contact Material | Phosphor Bronze | Front Connection | Level 1 |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Package Quantity | Tube | Mating Orientation | Without |
| Termination Finish | Tin-Lead over Nickel | Number of Positions | 125 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | Plug | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | No |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
