Business
| Standard Pack | 50 | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Current Rating (Max) | 1/Contact A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 12.37 mm |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Body Color | 蓝色 | Cable Exit | Without |
| Cable Type | 带状电缆 | Wire Gauge | 28-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Polarization | Military |
| 2nd Connector | Without | Housing Color | Blue |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | AMP-LATCH | Contact Finish | Tin over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic Glass Reinforced |
| Length - Overall | 17.17 mm | Mounting Feature | Without |
| Cable Termination | IDC | Mating Orientation | With |
| Number of Contacts | 2 | Number of Positions | 10 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | Receptacle |
| Product Type | 连接器 | Connection Type | Ribbon Cable |
| With Modem Control | Yes | ||
Environmental
| Operating Temperature | -55C to 125C | ||
Similar Parts
2-1761603-3
te connectivity / amp
$16.8803
Details
5104338-1
te connectivity / amp
$7.9560
Details

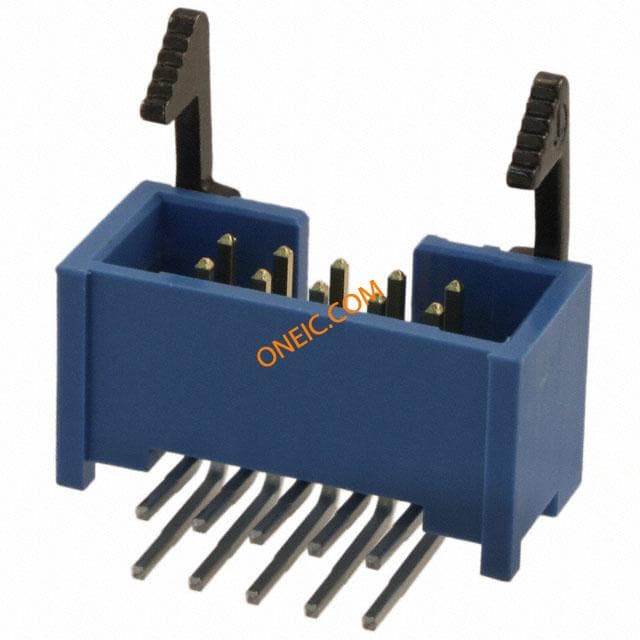

2-1761609-3
te connectivity / amp
$29.8520
Details
1761607-3
te connectivity / amp
$19.1760
Details
5103309-1
te connectivity / amp
$4.2126
Details
2-1761606-3
te connectivity / amp
$22.0150
Details
5102321-1
te connectivity / amp
$14.6989
Details
1-111504-4
te connectivity / amp
$58.2563
Details
5499923-1
te connectivity / amp
$13.8720
Details
5102322-1
te connectivity / amp
$21.8008
Details
5499345-1
te connectivity / amp
$25.0634
Details
2-5499141-1
te connectivity / amp
$42.2965
Details
5102154-1
te connectivity / amp
$10.5163
Details
5102160-1
te connectivity / amp
$10.1320
Details
1761609-3
te connectivity / amp
$32.6400
Details
2-5499206-1
te connectivity / amp
$16.6192
Details
5102159-1
te connectivity / amp
$7.8301
Details
1-111446-4
te connectivity / amp
$25.2450
Details

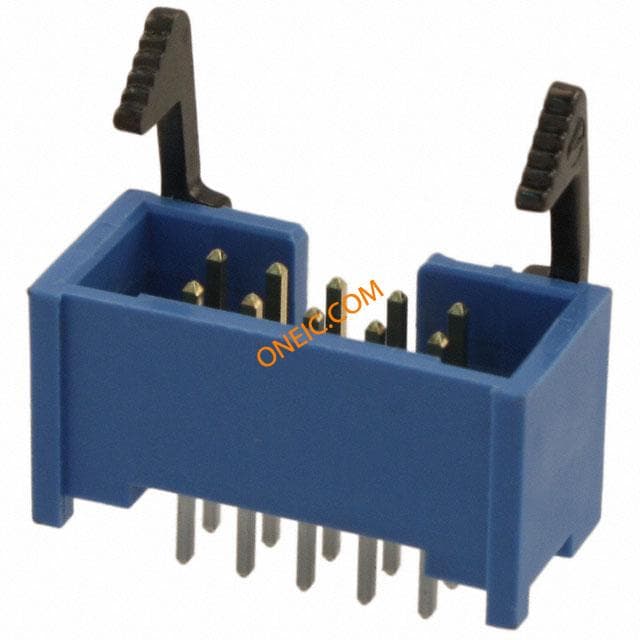

2-1761608-3
