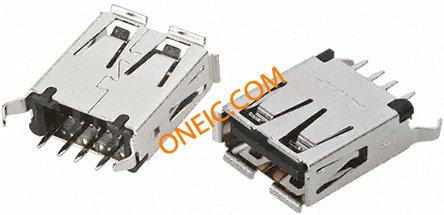

点击放大查看
对参数有疑问？问 AI 助手
Business
| Product | USB Type A Connectors | Product Category | USB Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 2400 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Wave solder capable to 240°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | USB |
| Current Rating (Max) | 1 A | Insulation Resistance | 100 MOhms |
| Voltage - Supply (Min) | 30VAC | ||
Mechanical
| Size | Standard | Color | Black |
| Depth | 7.12 mm | Height | 15 mm |
| Weight | 0.26 | Packaging | Tray |
| Orientation | Vertical | Termination | Solder |
| Housing Color | Black | Length - Tail | 2.8 [0.11] |
| Mounting Type | Through Hole | Shell Plating | Bright Tin |
| Connector Type | USB Type A Receptacle | Contact Finish | Gold |
| Mounting Style | Through Hole | Locking Feature | Without |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 14.5 mm | Package Quantity | Tray |
| Termination Rows | Without | Connector - Cable | socket |
| Termination Style | Solder | Number of Contacts | 4 |
| Contact Termination | Through Hole | Number of Positions | 4 |
| Surface Mount Land Size | Without | 1st Connector Mounting Type | :PCB |
| Contact Finish Thickness - Mating | 30 Microinches | ||
Product Info
| Spg | 1 | Type | USB |
| Gender | RCP | Series | A |
| Features | Without Locking Feature | Number of Taps | 63000449 |
| Specifications | USB 2.0 | Connection Type | Printed Circuit Board |
| Number of Ports | 1 | Number of Units | 1 |
Environmental
| Operating Temperature | 0 C to + 50 C | Operating Temperature - Junction | 85C |
