173977-7
| Manufacturer | |
| Description | Conn IDC Connector RCP 7 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 7POS 28-26AWG 2MM Receptacle assembly, MT,2mm,IDC,7 way,CT Conn Housing RCP 7 POS 2mm Crimp ST Cable Mount Conn IDC Connector RCP 7 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = Receptacle7 PositionNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTRECASSY7P Female cable connector Pitch2 mm Poles 7 CT, 173977-7, TE Connectivity TE Connectivity AMP CT 系列 2mm 节距 7 路 直 母 电缆安装 PCB 壳体 CT CONN MT REC ASSY 7P |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC950 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250V(Power),30V(Signal) | Number of Poles | 7 |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 10A(Power),2A(Signal) |
Mechanical
| Color | Natural | Depth | 5.1mm |
| Pitch | 2 mm | Width | 4.6mm |
| Length | 16mm | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Cable Type | Discrete or Ribbon Cable |
| Wire Gauge | 26-28 AWG | Orientation | 直 |
| Termination | IDT | Contact Form | Female Socket |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | IDC Mass Termination | Contact Finish | Pre-Tin |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | PBT - GF |
| Length - Overall | 2.00 [0.079] | Package Quantity | 1,000 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Pin Hole Diameter | 0.079" |
| Number of Contacts | 7 | Insulation Diameter | 0.85 â 1.05 [0.034 â 0.041] |
| Number of Positions | 7 | 1st Connector Gender | Female |
| Mounting Hole Diameter | 带有 | Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | MT | Features | Closed End |
| Main Purpose | Closed End | Manufacturer | MTSeries |
| Product Type | Connector | Connection Type | Wire |
| Connection Method | Wire-Board | Output Configuration | Free Hanging (In-Line) |
| For Use With/Related Products | Wire-to-Board Connector | ||
Environmental
| Operating Temperature | -30...+105 °C | ||
Documents & Media
Similar Parts
292133-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 7POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 7P W/O KIN 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:Wire-to-BoardApplies To Printed Circuit Board2.00 mm CenterlineConnectorHeaderSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 7P W/O KIN

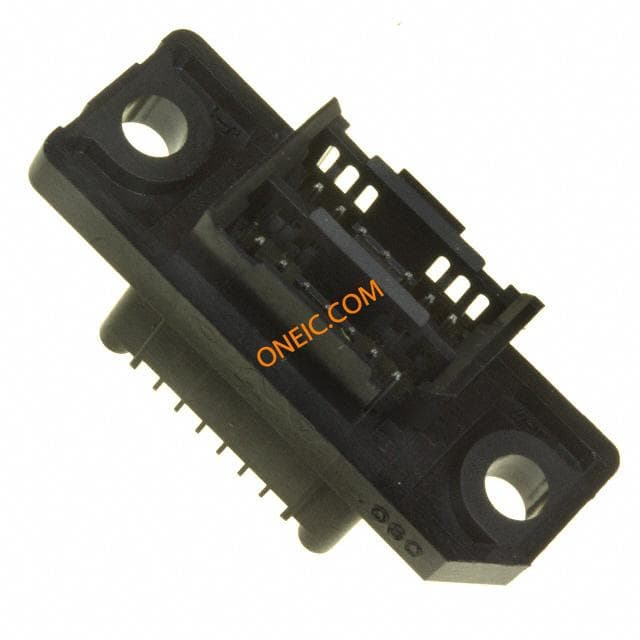

5-292177-1
